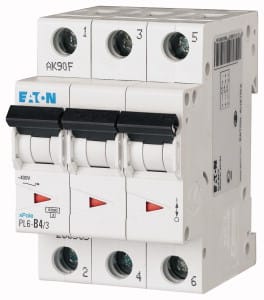

PL6-C16/3 C 16A 3P OVERCURRENT CIRCUIT BREAKER C 16A 3M 6KA

Name: PL6-C16/3 C 16A 3P OVERCURRENT CIRCUIT BREAKER C 16A 3M 6KA
Brand: EATON
SKU: 836714
Availability: InStock

20,16 € VAT incl.

VAT incl. (21%)

Part No: 286601

Brand: EATON

5 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,308 kg
Dimensions	82 × 70 × 50 mm
Voltage type	AC
Built-in depth	70.5mm
Rated current	16A
Rated voltage	400V
Frequency	50Hz
Release characteristic	C
Rated insulation voltage Ui	440V
Current limiting class	3
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	3
Degree of protection (IP)	IP20
Number of protected poles	3
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	0kA
Rated impulse withstand voltage Uimp	4kV
Brand	EATON
SKU	836714
EAN	4015082866013
