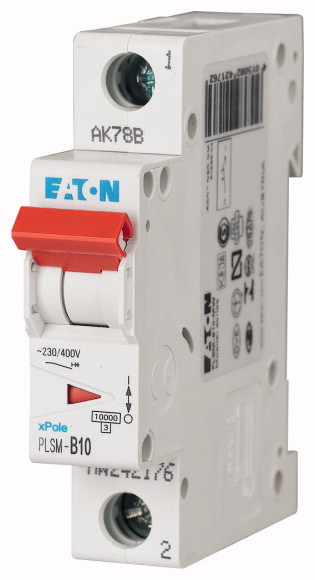

PLSM B 10A 1P MW OVERCURRENT CIRCUIT BREAKER B 10A 1M MW 10KA

Name: PLSM B 10A 1P MW OVERCURRENT CIRCUIT BREAKER B 10A 1M MW 10KA
Brand: EATON
SKU: 522868
Availability: InStock

8,77 € VAT incl.

VAT incl. (21%)

Part No: 242176

Brand: EATON

1 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,12 kg
Dimensions	80 × 18 × 60 mm
Voltage type	AC
Built-in depth	70.5mm
Rated current	10A
Rated voltage	230V
Frequency	50Hz
Release characteristic	B
Rated insulation voltage Ui	440V
Current limiting class	3
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	1
Degree of protection (IP)	IP20
Number of protected poles	1
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	0kA
Rated impulse withstand voltage Uimp	4kV
Brand	EATON
SKU	522868
EAN	4015082421762
