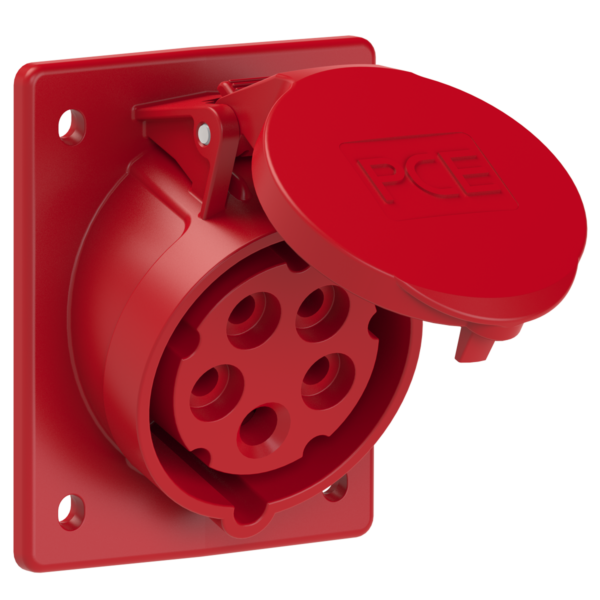

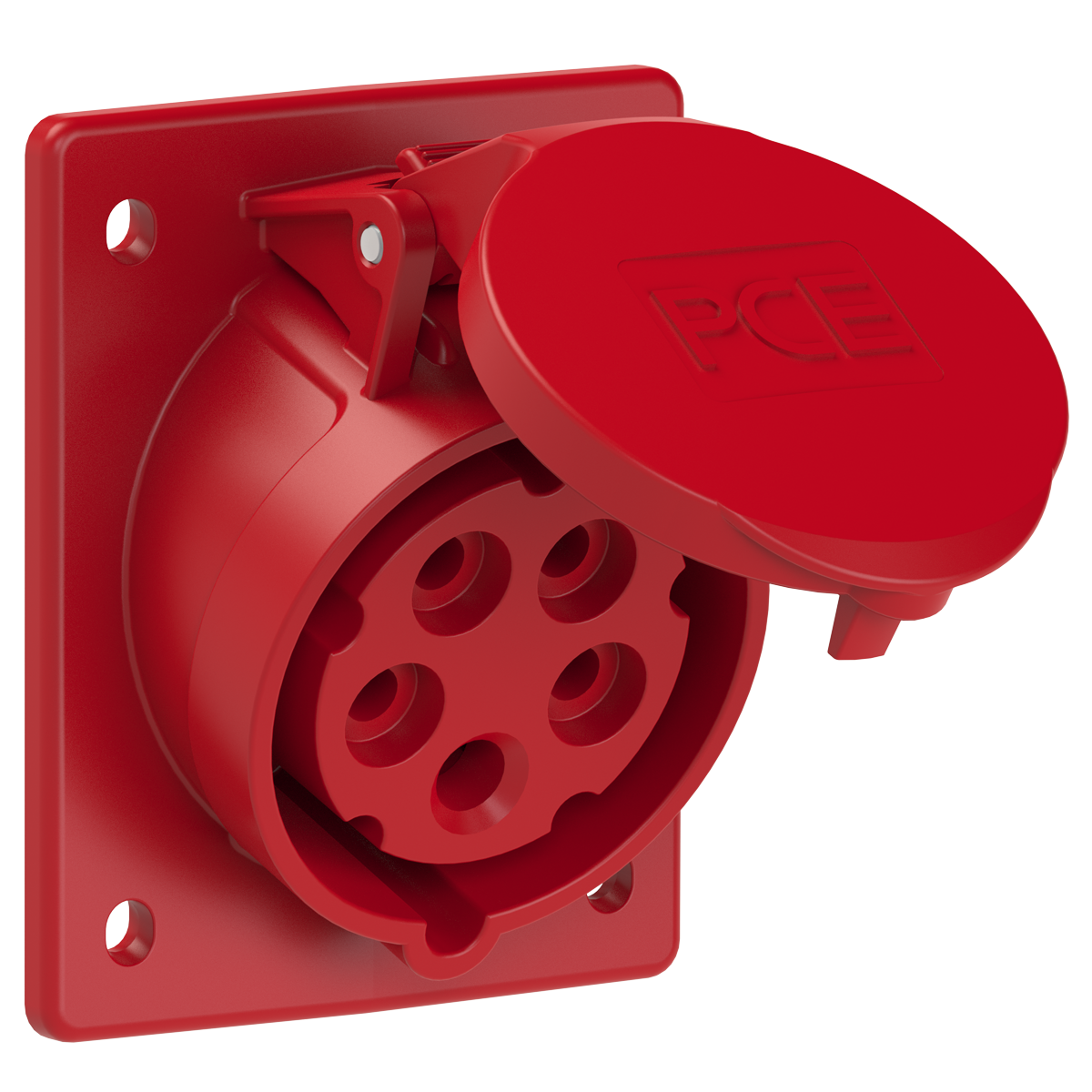

POWER SOCKET 16/5 DIAGONAL IP44 400V 80X97
7,84 € VAT incl.
- VAT excl.
6,48 € VAT excl.
VAT incl. (21%)
Part No:
415-6
Brand:
PCE
27 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
PCE0058 Gniazdo F 5*16A tablicowe skośne PCE 415-6 CENTROPOL
Additional information
| Weight | 0,156 kg |
|---|---|
| Dimensions | 100 × 82 × 76 mm |
| RAL-number |
3000 |
| Number of poles |
5 |
| pa_material |
Plastic |
| Surface treatment contacts |
Untreated |
| IEC-amperage |
16A |
| Connection system |
Screwed terminal |
| Insert direction |
Angled |
| Contact material |
CuZn |
| Degree of protection (IP) |
IP44 |
| Clock hour position |
6h |
| Identification colour |
Red |
| Voltage according to EN 60309-2 |
400 V (50+60 Hz) red |
| Drill hole distance vertical |
73mm |
| Drill hole distance horizontal |
60mm |
| Flange size vertical |
97mm |
| Flange size horizontal |
80mm |
| Brand | |
| SKU | 070649 |
| EAN | 9003399052521 |
