Outlet

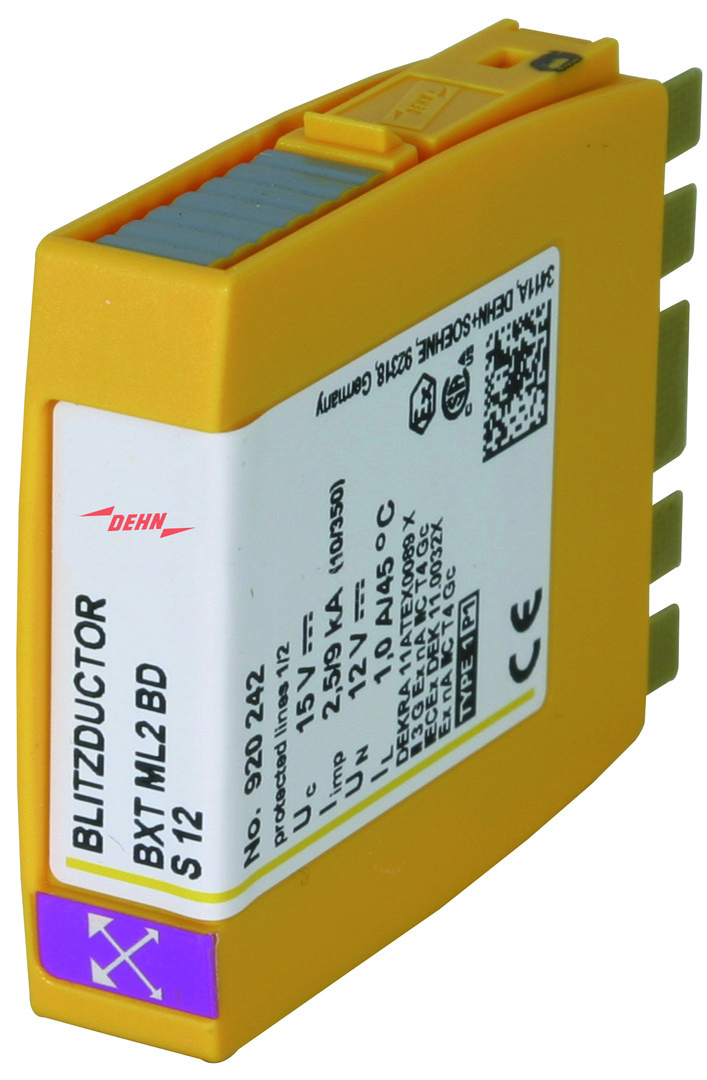

PROTECTION MODULE BXT ML2 BD S 12 FOR BLITZDUCTOR XT ARRESTER
125,65 € VAT incl.
- VAT excl.
103,84 € VAT excl.
VAT incl. (21%)
Part No:
920242
Brand:
DEHN
2 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Additional information
| Weight | 0,0276 kg |
|---|---|
| Dimensions | 19 × 65 × 61 mm |
| Mounting method |
On basic element |
| Connection 1 |
Screw terminal |
| Number of conductors (without earthing) |
2 |
| Limiting frequency |
2.8MHz |
| Max. continuous voltage AC |
10.6V |
| Nominal discharge surge current (8/20) |
20kA |
| Nominal load current |
1A |
| Voltage protection level core/core |
19V |
| Voltage protection level core/earth |
550V |
| Max. continuous voltage DC |
15V |
| Degree of protection (IP) |
IP20 |
| Nominal voltage DC |
12V |
| Assembly width |
12mm |
| Earthing via |
DIN rail (top hat rail) |
| Brand | |
| SKU | 3023770 |
| EAN | 4013364118362 |
