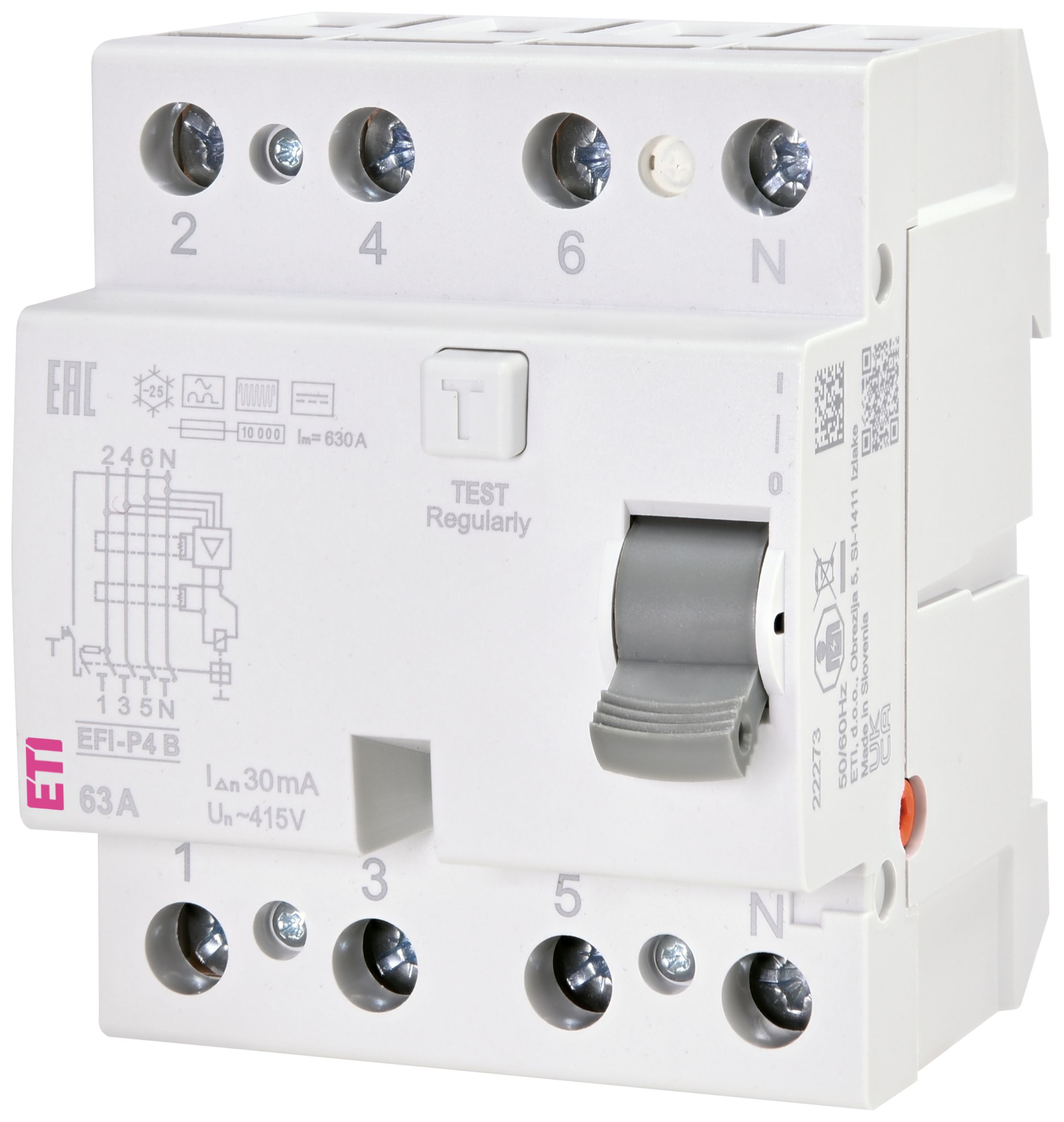

RESIDUAL CURRENT CIRCUIT BREAKER TYPE B
446,99 € VAT incl.
- VAT excl.
369,41 € VAT excl.
VAT incl. (21%)
Part No:
002061951
Brand:
ETI-POLAM
2 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
Residual current circuit breakers and blocks are devices that protect against electric shock and the effects of current leakage. Their task is to quickly disconnect the power supply if any irregularities are detected. They are commonly used in home and industrial installations. Residual current blocks are installed as additional modules for miniature circuit breakers.
Additional information
| Weight | 0,4 kg |
|---|---|
| Dimensions | 50 × 50 × 50 mm |
| Mounting method |
DIN rail |
| Voltage type |
AC |
| Built-in depth |
70mm |
| Rated current |
25A |
| Rated voltage |
415V |
| Rated insulation voltage Ui |
500V |
| Number of poles |
3 |
| Rated fault current |
0.03A |
| Leakage current type |
B |
| Selective protection |
No |
| Short-circuit breaking capacity (Icw) |
10kA |
| Surge current capacity |
3kA |
| Pollution degree |
2 |
| Width in number of modular spacings |
4 |
| Short-time delayed tripping |
No |
| Frequency |
50/60 Hz |
| Degree of protection (IP) |
IP20 |
| With interlocking device |
No |
| Additional equipment possible |
No |
| Rated impulse withstand voltage Uimp |
4kV |
| Brand | |
| SKU | 3084611 |
| EAN | 3838400096876 |
