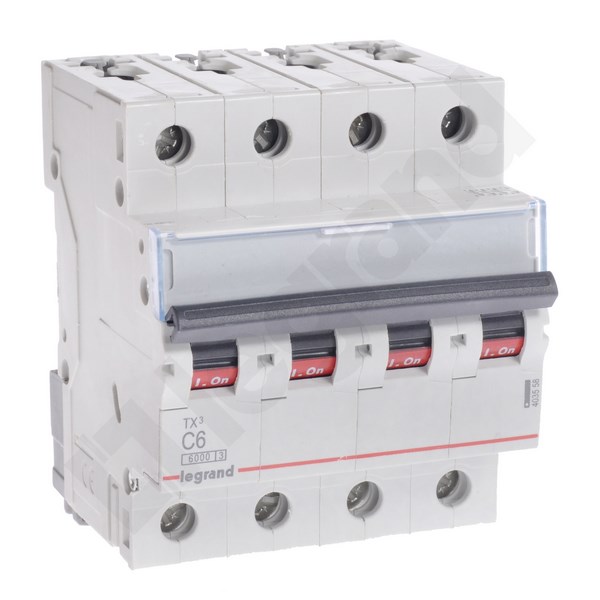

S304 TX3 C 6A 4P Circuit Breaker C 6A 4M 6KA (ex 605666)

Name: S304 TX3 C 6A 4P Circuit Breaker C 6A 4M 6KA (ex 605666)
Brand: LEGRAND
SKU: 020628
Availability: InStock

61,73 € VAT incl.

VAT incl. (21%)

Part No: 403558

Brand: LEGRAND

1 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,51 kg
Dimensions	89 × 72 × 78 mm
Voltage type	AC
Built-in depth	44mm
Rated current	6A
Rated voltage	400V
Frequency	50Hz
Release characteristic	C
Rated insulation voltage Ui	500V
Current limiting class	3
Pollution degree	2
Width in number of modular spacings	4
Degree of protection (IP)	IP20
Number of protected poles	4
Number of poles (total)	4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10kA
Rated impulse withstand voltage Uimp	4kV
Brand	LEGRAND
SKU	020628
EAN	3414970389794
