Weight	25,6 kg
Core identification	Colour
Weight	60kg/km
Stranding element	Pairs
Category	6
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Other
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Protective sheath	Al/PE
Number of cores	8
Stranding	None
Outer diameter approx.	6.4mm
NVP value	62%
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Fca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
AWG size	23
Min. permitted bending radius, moving application with forced guidance	64mm
Min. permitted bending radius, moving application/free movement	64mm
Min. permitted bending radius, stationary application/permanent installation	51mm
Specification core insulation	Polyethylene (PE)
Specification material outer sheath	Polyethylene (PE)
Material armouring	Other
Cable geometry	Round
Approved type of underground installation	Other
Brand	C&C PARTNERS
SKU	3119421
EAN	5904169100197

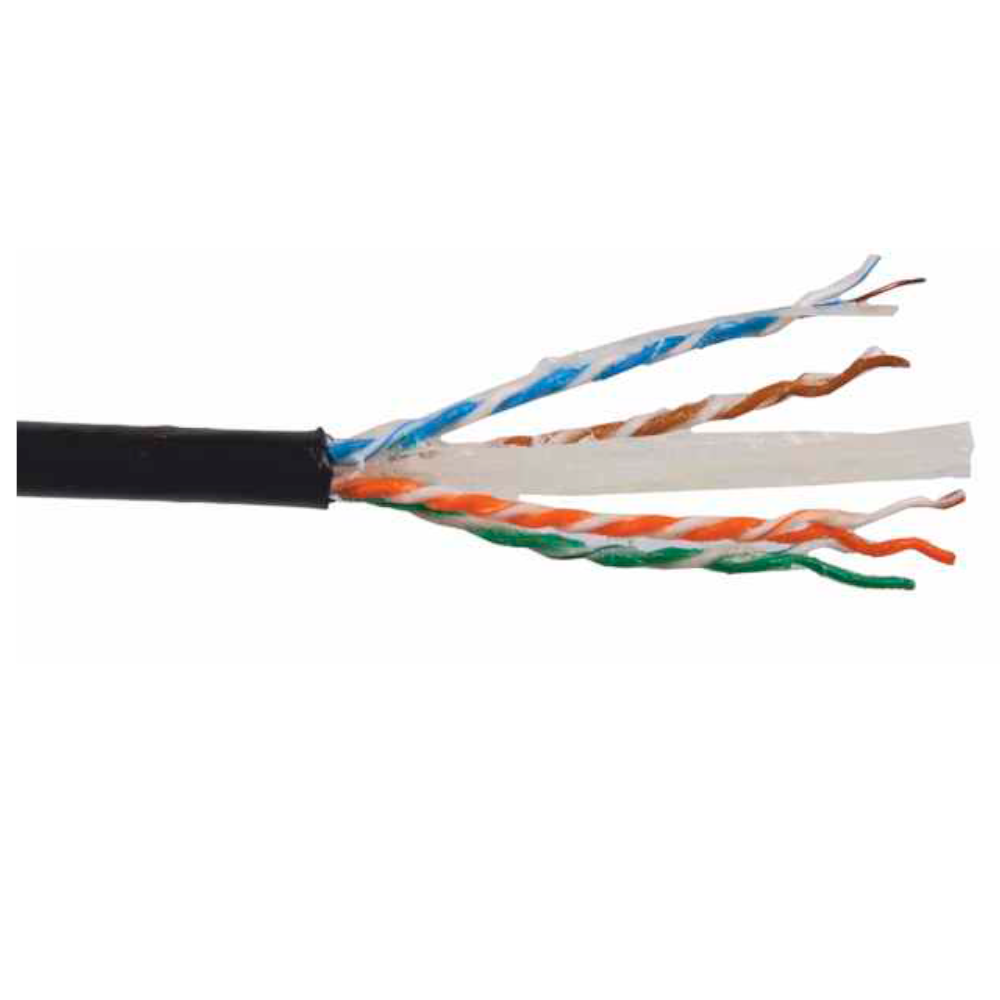

SECURITYNET U/UTP CABLE CAT. 6 OUTDOOR GEL-FILLED PE 500M
