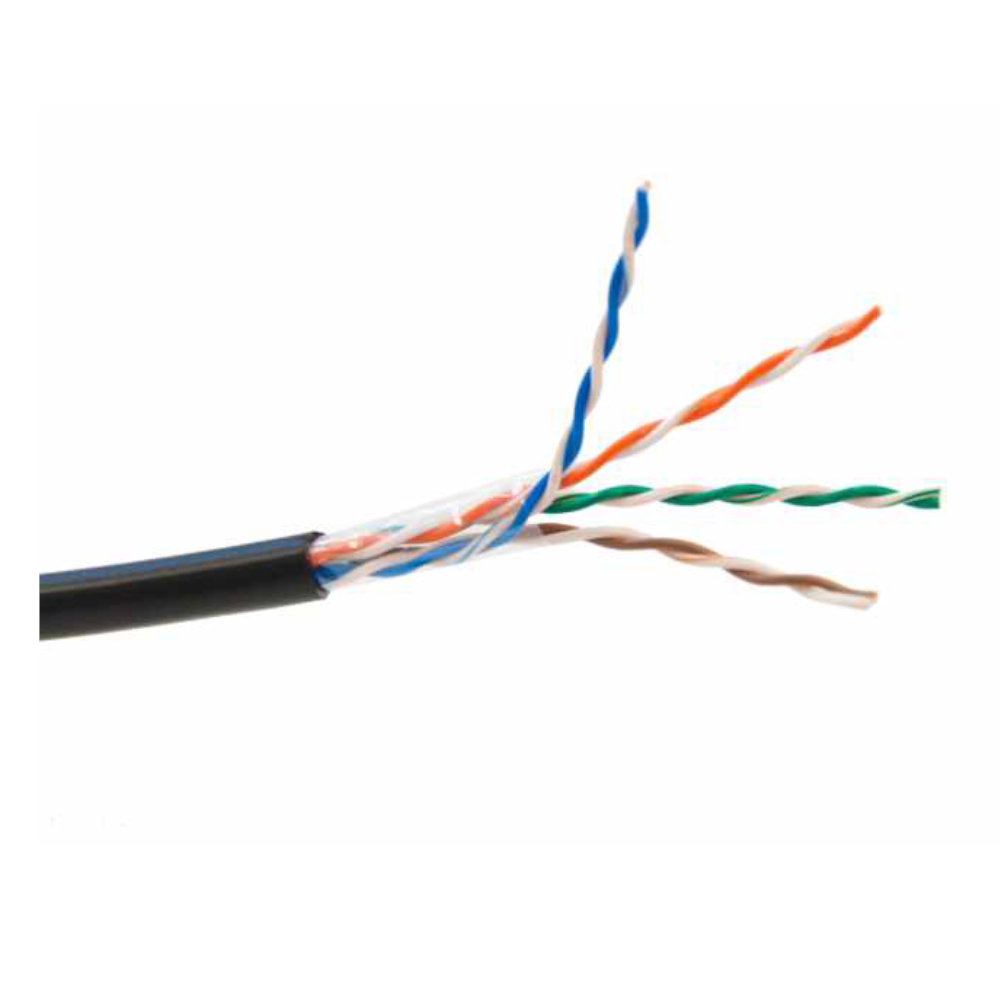

SECURITYNET U/UTP CAT 5E CABLE, OUTDOOR DRY PE 500M
503,59 € VAT incl.
- VAT excl.
416,19 € VAT excl.
VAT incl. (21%)
Part No:
SEC5EUTPD
Brand:
securityNET
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Description
Earth cables for LAN and Ethernet networks are intended for laying directly in the ground or in the technical sewage system. They are characterized by a reinforced structure and a moisture-resistant outer coating that protects against mechanical damage and weather conditions. They provide stable and fast network connections in external installations, both in home and industrial networks.
Additional information
| Weight | 13,9 kg |
|---|---|
| Core insulation material |
Other |
| Core identification |
Colour |
| Weight |
29kg/km |
| Stranding element |
Pairs |
| Color of coating/insulation |
Black |
| Category |
5E |
| Conductor material |
Copper |
| Screen over stranding element |
None |
| Screen over stranding |
None |
| Material outer sheath |
Other |
| Conductor category |
Class 1 = solid |
| Armouring/reinforcement |
None |
| Permissible ambient temperature of the cable during installation |
-40°C |
| Permissible ambient temperature of the cable after installation (without vibration) |
0°C |
| Protective sheath |
Al/PE |
| Number of cores |
8 |
| Stranding |
None |
| Outer diameter approx. |
5.2mm |
| NVP value |
69% |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Fca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| AWG size |
24 |
| Min. permitted bending radius, moving application with forced guidance |
52mm |
| Min. permitted bending radius, moving application/free movement |
52mm |
| Min. permitted bending radius, stationary application/permanent installation |
42mm |
| Specification core insulation |
Polyethylene (PE) |
| Specification material outer sheath |
Polyethylene (PE) |
| Material armouring |
Other |
| Cable geometry |
Round |
| Approved type of underground installation |
Other |
| Brand | |
| SKU | 941101 |
| EAN | 5904169100081 |
