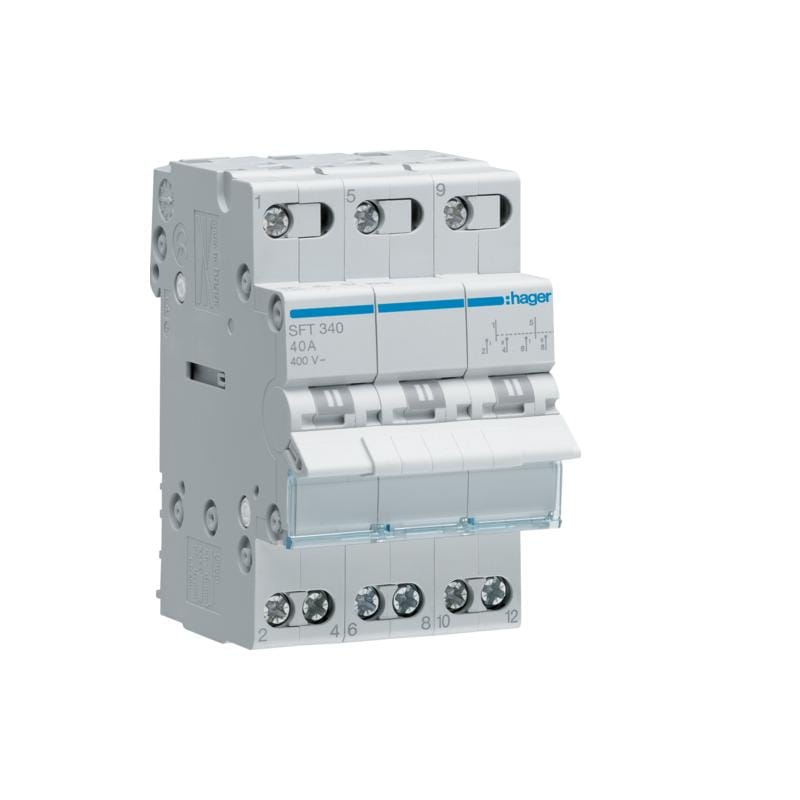

SFT340 40A 3P I-0-II 3M 400V AC TOP-CONNECTOR POWER SUPPLY SWITCH

Name: SFT340 40A 3P I-0-II 3M 400V AC TOP-CONNECTOR POWER SUPPLY SWITCH
Brand: HAGER
SKU: 542472
Availability: InStock

44,98 € VAT incl.

VAT incl. (21%)

Part No: SFT340

Brand: HAGER

16 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

SFT340 PRZEŁĄCZNIK I-0-II ZAS.GÓRA 3P 40A

Additional information

Weight	0,021 kg
Dimensions	95 × 80 × 55 mm
Voltage type	AC
Switching function	Two-way switch
With signal lamp
Built-in depth	70mm
Rated current	40A
Rated voltage	400V
Max. lamp power	0W
Rated permanent current Iu	40A
Number of poles	3
With zero (off) position	Yes
Short-circuit breaking capacity (Icw)	0.6kA
Rated switching capacity	0.846kA
Width in number of modular spacings	3
Min. rated voltage	400V
Degree of protection (IP)	IP20
Type of electrical connection of main circuit	Screw connection
Suitable for floor mounting	No
Suitable for front mounting	Yes
Suitable for distribution board installation	Yes
Suitable for intermediate mounting	No
Complete device in housing	No
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	3
Brand	HAGER
SKU	542472
EAN	3250615510938
