SM060C LED40S/840 PSU 1200×200 PANEL LED NT 40W IP20 4000LM 4000K 110ST NIGHT
63,08 € VAT incl.
- VAT excl.
52,13 € VAT excl.
VAT incl. (21%)
RRP price:
100,88 €
Part No:
911401842480
Brand:
PHILIPS FAREL
6 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Additional information
| Weight | 3,404 kg |
|---|---|
| Dimensions | 1250 × 240 × 55 mm |
| Protection class |
I |
| Lamp holder |
Other |
| Conductor cross section |
2.5mm2 |
| Connection type |
Other |
| Housing colour |
White |
| Voltage type |
AC |
| Type of grid |
None |
| Type of control gear |
LED operating device current-controlled |
| Colour rendering index CRI |
80-89 |
| Built-in width |
200mm |
| Number of poles |
3 |
| Length |
1200mm |
| Height/depth |
53mm |
| Housing material |
Steel |
| Lamp type |
LED not exchangeable |
| Built-in length |
1200mm |
| Light outlet |
Direct |
| Light sharing |
Symmetric |
| Material cover |
Plastic, opal |
| Impact strength |
IK03 |
| Nominal voltage |
220V |
| Degree of protection (IP) |
IP20 |
| Beam angle |
Extreme wide beam >80° |
| Power factor |
0.9 |
| Nominal current |
160mA |
| Colour temperature |
4000K |
| Max. system power |
40W |
| Rated luminous flux according to IEC 62722-2-1 |
4000lm |
| Colour of light |
White |
| Type of wiring |
Suitable for through wiring |
| Rated life time L70/B50 at 25 °C |
60000h |
| Colour consistency (McAdam ellipse) |
SDCM5 |
| Total harmonic distortion |
20 |
| Photobiological safety according to EN 62471 |
RG0 |
| Rated ambient temperature according to IEC 62722-2-1 |
25°C |
| Filament test according to IEC 60695-2-11 |
650 °C – 30 s |
| Light distributor |
Diffuser lens/optic/panel |
| Luminaire efficacy |
100lm/W |
| Built-in height/depth |
53mm |
| Surface protection housing |
Powder coating |
| Unified Glare Ratio (UGR) |
25 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) |
41 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) |
24 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) |
75% |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) |
65% |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) |
7.5% |
| Flickering value Pst LM |
1 |
| Stroboscope effect value SVM |
1.6 |
| Colour of light adjustable |
No |
| Luminous flux adjustable |
No |
| Beam angle adjustable |
No |
| Brand | |
| SKU | 828406 |
| EAN | 8710163350417 |
Related products
KNEE WHITE LINEAR LUMINAIRE 18W NW 4000K 1800LM PF0.5 IP40 600MM
In stock
6,62 € VAT incl.
RRP price:
8,91 €
Part No:
LD-KEL18W-NW
Brand:
GTV
KNEE WHITE LINEAR LUMINAIRE 36W NW 4000K 3600LM PF0.5 IP40 1200MM
In stock
13,75 € VAT incl.
RRP price:
17,80 €
Part No:
LD-KEL36W-NW
Brand:
GTV
MEBA 4LED 2X150 OP PS LINEAR LIGHT FIXTURE
In stock
30,92 € VAT incl.
RRP price:
30,92 €
Part No:
26965
Brand:
KANLUX

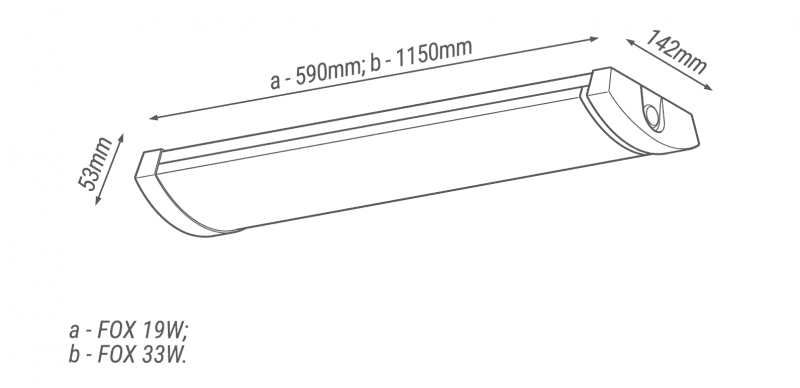

FOX SURFACE-MOUNTED LUMINAIRE LED 33W 840 NW 4000K 4600LM 1200MM IP30 PC STEEL
