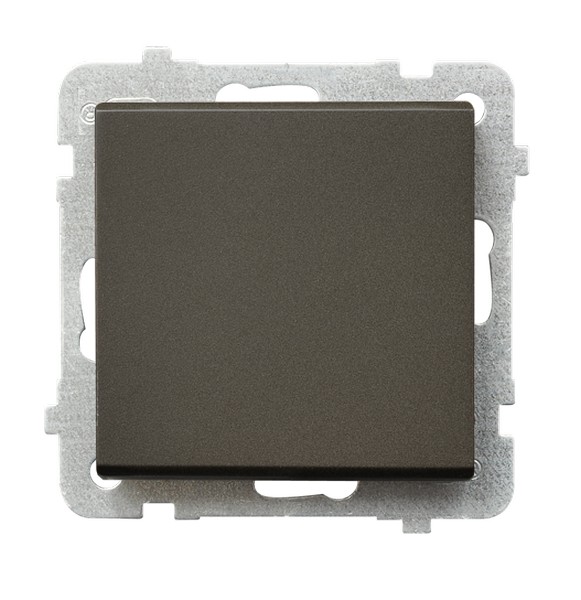

SONATA MODULE CHOCOLATE METALLIC 1-POLE SWITCH SPRING TERMINALS 16AX 250V

Name: SONATA MODULE CHOCOLATE METALLIC 1-POLE SWITCH SPRING TERMINALS 16AX 250V
Brand: OSPEL
SKU: 165014
Availability: InStock

9,64 € VAT incl.

VAT incl. (21%)

Part No: ŁP-1R/m/40

Brand: OSPEL

1 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

A single switch is an element of an electrical installation used to turn on and off one electrical circuit, for example a light in one room. This is the simplest type of switch that works on the principle of interrupting or closing an electrical circuit.

Additional information

Weight	0,067 kg
Dimensions	140 × 90 × 42 mm
Nominal voltage	250V
Mounting method	Flush-mounted
Assembly arrangement	Basic element with complete housing
Method of operation	Rocker/button
Color	Bronze
Connection type	Push-in clamp
Illumination	No
Surface protection	Lacquered
Built-in depth	25mm
Rated current	16A
Material grade	Thermoplastic
Backlight type	Other
pa_material	Plastic
Type of fastening	Mounting with claw and screw
Wiring system	Off switch 1-pole
Number of rockers	1
RAL-number (similar)	8019
Switching current for fluorescent lamps	16AX
Surface finishing	Glossy
Suitable for degree (IP)	IP20
Device width	75mm
Device height	75mm
Device depth	42mm
Label space/information surface	No
Number of modules (module system)	1
Min. depth of built-in installation box	60mm
Brand	OSPEL
SKU	165014
EAN	5907577448455
