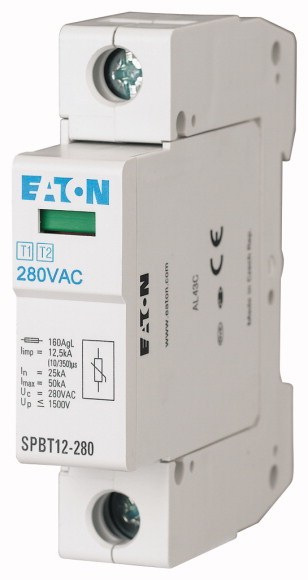

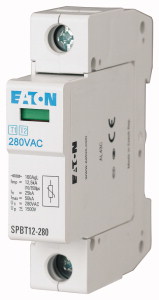

SPBT12-280/1 SURGE ARRESTER T1+T2 B+C 1P 1M 12.5KA 1.5KV TN

Name: SPBT12-280/1 SURGE ARRESTER T1+T2 B+C 1P 1M 12.5KA 1.5KV TN
Brand: EATON
SKU: 503781
Availability: InStock

50,59 € VAT incl.

VAT incl. (21%)

Part No: 158306

Brand: EATON

132 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,137 kg
Dimensions	82 × 70 × 15 mm
Mounting method	DIN rail (top hat rail) 35 mm
Number of poles	1
Construction size	1 modular spacing
Voltage protection level	1.5kV
Exhausting	No
Follow current extinguishing capability	0kA
Max. continuous voltage AC	280V
Nominal voltage AC	280V
Nominal voltage DC	0V
Test class	Type 1 + 2
Voltage protection level L-N	0kV
Signalling at the device	Optical
Max. continuous voltage DC	0V
Degree of protection (IP)	IP20
Max. PV-voltage	0V
Voltage protection level N-PE	0kV
Max. conductor cross section solid (solid, stranded)	25mm2
Max. conductor cross section flexible (fine-strand)	35mm2
Voltage protection level (DC+ - DC-)	0kV
Voltage protection level (DC+/DC- - PE)	0kV
Specific energy (W/R)	39.1kJ/Ω
Voltage protection level L-PE	1.5kV
Max. overcurrent protection device, parallel connection (fuse)	0A
Max. overcurrent protection device, series connection (fuse)	160A
Brand	EATON
SKU	503781
EAN	4015081548842
