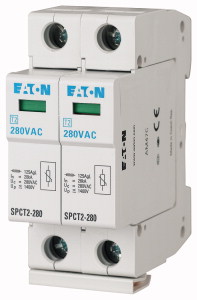

SPCT2-280/2 SURGE ARRESTER T2 C 2P 2M 20/40KA 1.4KV TN

Name: SPCT2-280/2 SURGE ARRESTER T2 C 2P 2M 20/40KA 1.4KV TN
Brand: EATON
SKU: 519314
Availability: InStock

61,04 € VAT incl.

VAT incl. (21%)

Part No: 167594

Brand: EATON

15 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,226 kg
Dimensions	75 × 85 × 37 mm
Mounting method	DIN rail (top hat rail) 35 mm
Number of conductors (without earthing)	2
Construction size	2 modular spacing
Voltage protection level	1.4kV
Max. continuous voltage AC	280V
Nominal discharge surge current (8/20)	20kA
Nominal voltage AC	280V
Nominal voltage DC	0V
Voltage protection level L-N	0kV
Signalling at the device	Optical
Max. continuous voltage DC	0V
Degree of protection (IP)	IP20
Max. PV-voltage	0V
Voltage protection level N-PE	0kV
Max. conductor cross section solid (solid, stranded)	25mm2
Max. conductor cross section flexible (fine-strand)	35mm2
Max. discharge surge current (8/20)	40kA
Short-circuit breaking capacity (Isccr)	0kA
Max. overcurrent protection device, parallel connection (fuse)	0A
Max. overcurrent protection device, series connection (fuse)	125A
Integrated short-circuit protection selective to fuse gG	0A
Brand	EATON
SKU	519314
EAN	4015081640867
