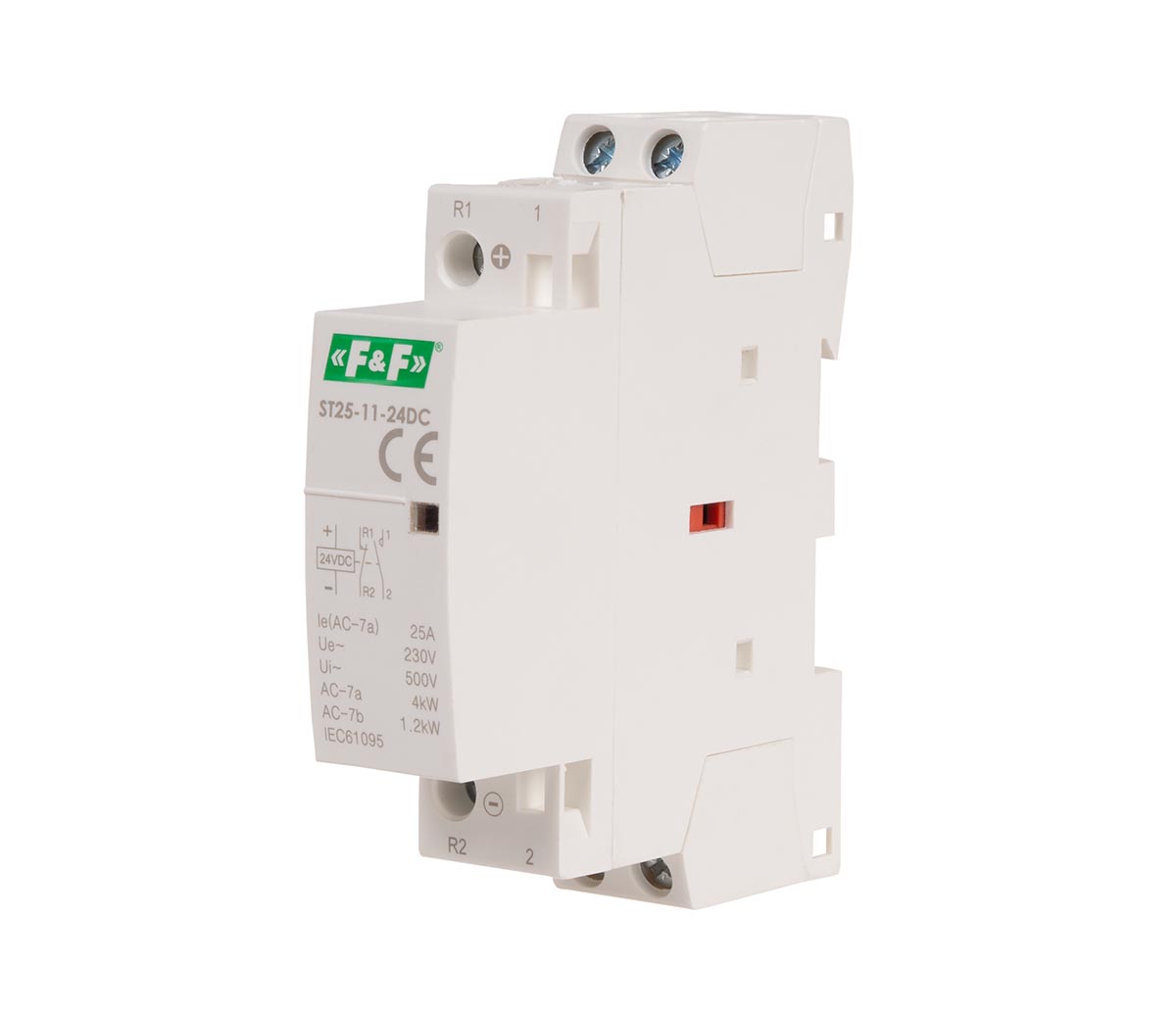

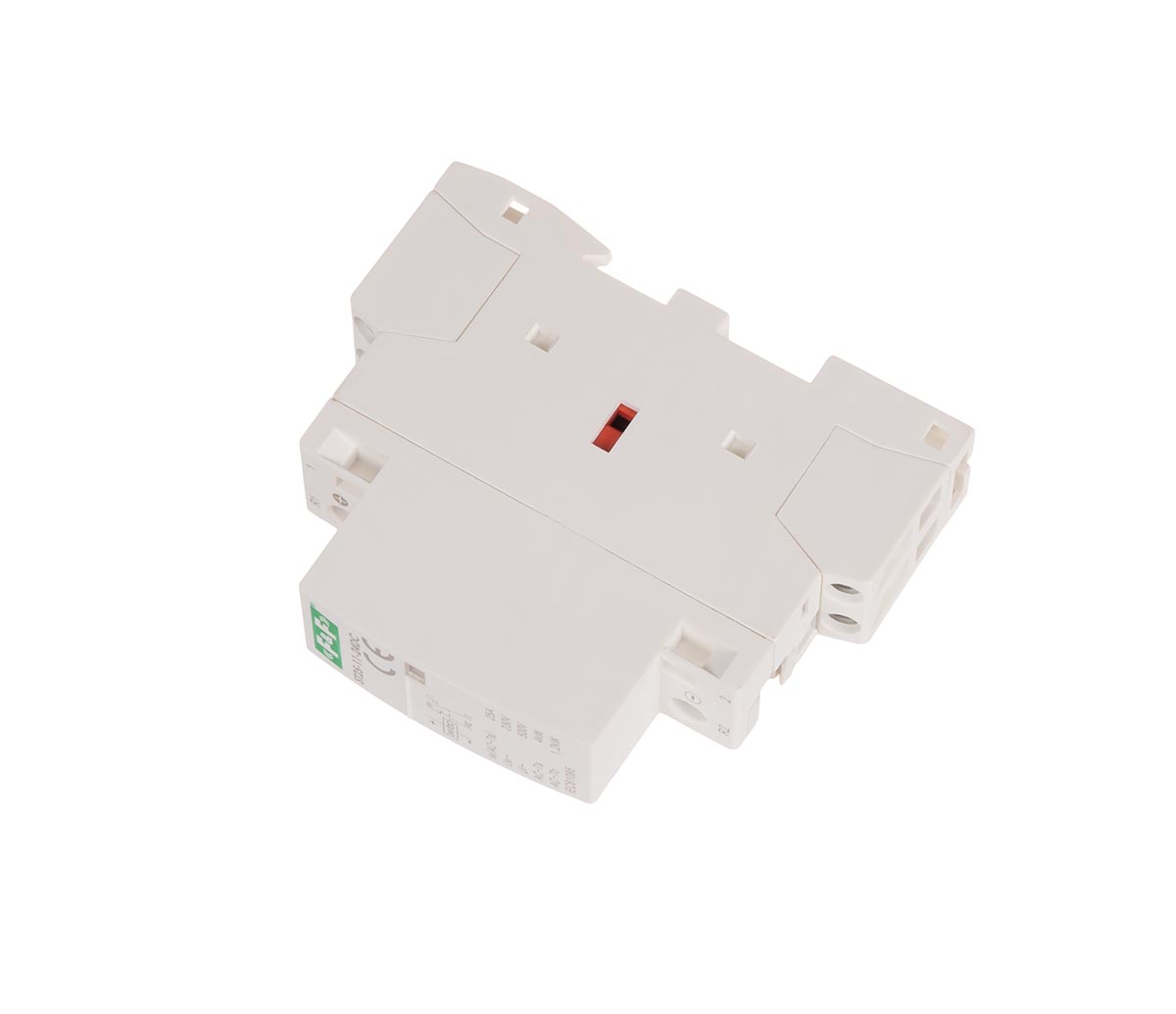

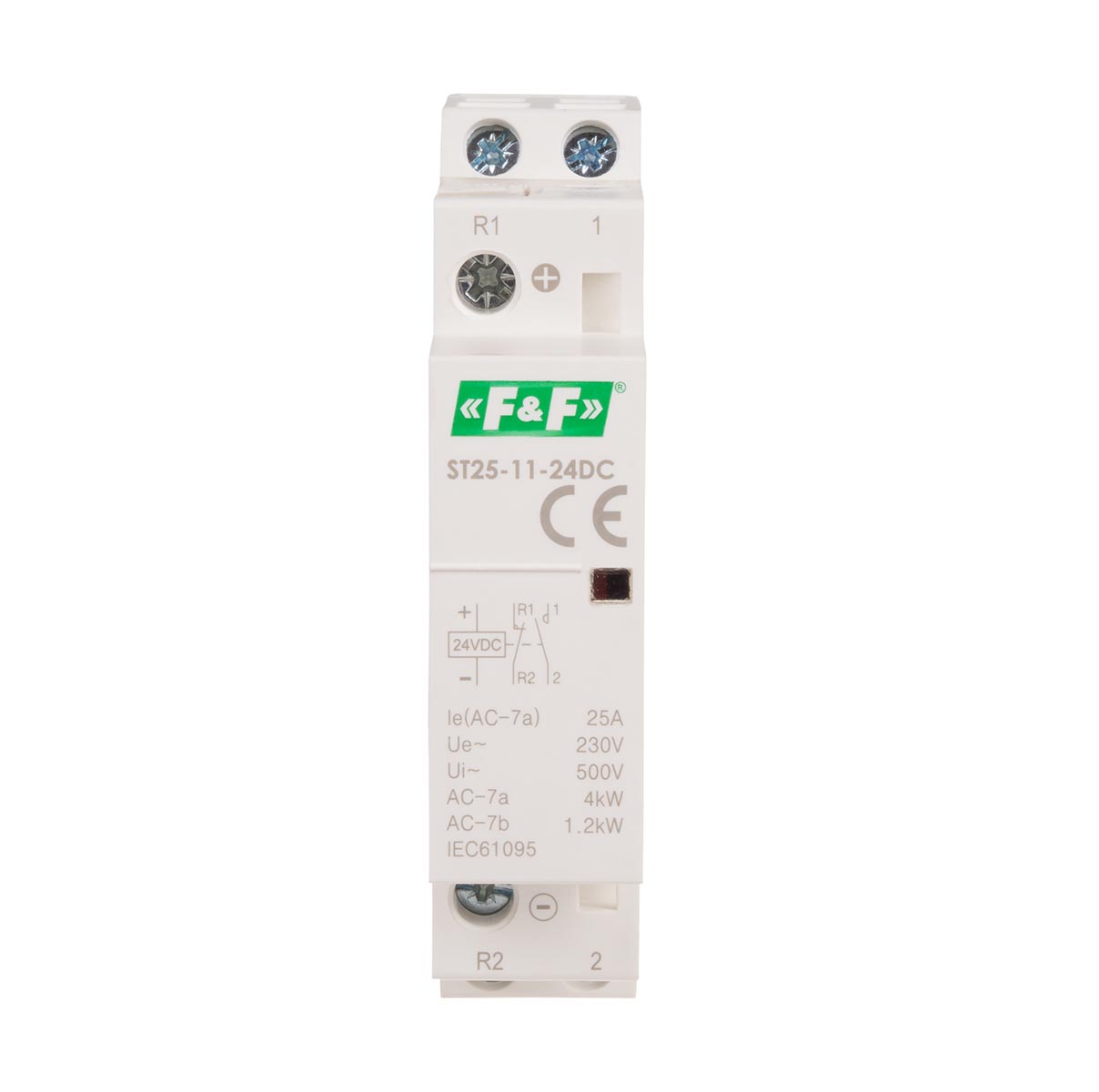

ST25-11-24DC MODULAR CONTACTOR 25A 1XNO+1XNC 1M 24V DC

28,57 € VAT incl.

VAT incl. (21%)

Part No: ST25-11-24DC

Brand: F&F

7 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

Modular contactors enable remote control of large loads such as heating, lighting and motors. They are mounted in switchboards on a DIN rail. Modular contactors offer high durability and operational reliability. They are a key element in automation and control systems.

Additional information

Weight	0,106 kg
Dimensions	70 × 85 × 20 mm
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Use category according to EN IEC 60947-4-1	AC-7a/AC-7b
Voltage type (excitation voltage)	DC
Voltage type (operating voltage)	DC
Degree of protection (IP)	IP20
Width in number of modular spacings	1
Max. load fluorescent lamp	0VA
Max. load fluorescent lamp (Duo circuit)	0VA
Max. load fluorescent lamp (parallel compensated)	0VA
Max. incandescent lamp load	0W
Built-in depth	65mm
Rated operation current	25A
Brand	F&F
SKU	944524
EAN	5902431672717
