Weight	4,5 kg
Dimensions	350 × 350 × 150 mm
Nominal cross section conductor	1.5mm2
Core identification	Colour
Weight	75kg/km
Drain wire	No
Nominal voltage U	300V
Stranding element	No
Shape of conductor	Round
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 5 = flexible
Nominal voltage U0	300V
Screen	No
Number of cores	2
Suspension element	None
Protective barrier	None
Outer diameter approx.	7mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, moving application/free movement	35mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	Yes
Brand	CET
SKU	863489
EAN	5901181001945

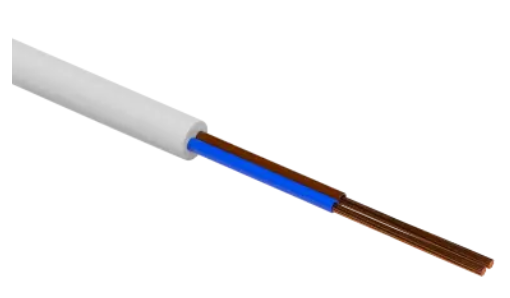

TIRE CABLE, RESIDENTIAL 300/300; OHMS 2X1.50 WHITE
