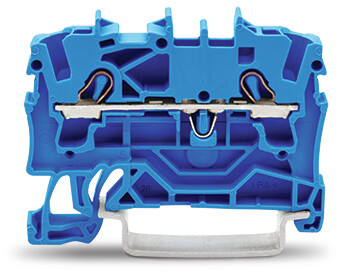

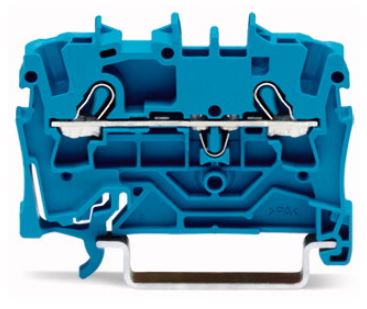

TOPJOBS 2.5 PASS-THROUGH CONNECTOR 2-WIRE BLUE

Name: TOPJOBS 2.5 PASS-THROUGH CONNECTOR 2-WIRE BLUE
Brand: WAGO
SKU: 057964
Availability: InStock

1,04 € VAT incl.

VAT incl. (21%)

Part No: 2002-1204

Brand: WAGO

700 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

09435/B ZŁĄCZKA TOPJOBS 2X2,5 2002-1204 2002-1204 SZT ELWAG

Additional information

Weight	0,005 kg

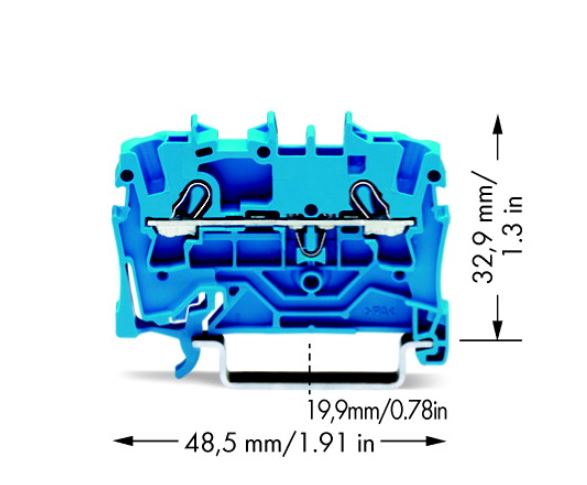

Dimensions	47 × 38 × 6 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Blue
Rated voltage	800V
Operating temperature	105°C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	Yes
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	2
Internally connected stages	No
Connectable conductor cross section solid-core	0.75mm2
Connectable conductor cross section fine-strand with cable end sleeve	0.75mm2
Connectable conductor cross section fine-strand without cable end sleeve	0.25mm2
Connectable conductor cross section multi-wired	0.25mm2
Material insulation body	Thermoplastic
Rated current In	24A
Explosion-tested version 'Ex e'	Yes
Brand	WAGO
SKU	057964
EAN	4017332999175
