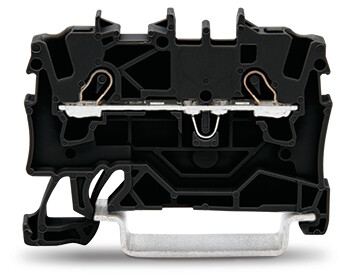

TOPJOBS 2-WIRE THROUGH CONNECTOR 1.5 MM2, BLACK

Name: TOPJOBS 2-WIRE THROUGH CONNECTOR 1.5 MM2, BLACK
Brand: WAGO
SKU: 908065
Availability: InStock

0,85 € VAT incl.

VAT incl. (21%)

Part No: 2001-1205

Brand: WAGO

50 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

Feed-through connectors enable direct connection of two cables in one line, without branching. They are characterized by a compact structure and easy installation on a DIN rail. They are ideal for simple, linear connections in control cabinets and switchboards. Used in many types of electrical and industrial installations.

Additional information

Weight	0,003 kg
Dimensions	20 × 60 × 6 mm
Inflammability class of insulation material according to with UL94	V0
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	2
Mounting method	DIN rail (top hat rail) 35 mm
Color	Black
Material insulation body	Thermoplastic
Operating temperature	105°C
Rated voltage	800V
Connectable conductor cross section solid-core	0.5mm2
Connectable conductor cross section fine-strand with cable end sleeve	0.75mm2
Connectable conductor cross section fine-strand without cable end sleeve	0.25mm2
Connectable conductor cross section multi-wired	0.25mm2
Rated current In	18A
Brand	WAGO
SKU	908065
EAN	4045454537371
