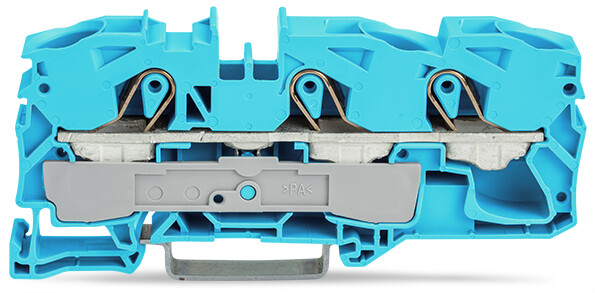

TOPJOBS 3-WIRE CONNECTOR 16 MM2 BLUE

Name: TOPJOBS 3-WIRE CONNECTOR 16 MM2 BLUE
Brand: WAGO
SKU: 545948
Availability: InStock

5,13 € VAT incl.

VAT incl. (21%)

Part No: 2016-1304

Brand: WAGO

25 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

Feed-through connectors enable direct connection of two cables in one line, without branching. They are characterized by a compact structure and easy installation on a DIN rail. They are ideal for simple, linear connections in control cabinets and switchboards. Used in many types of electrical and industrial installations.

Additional information

Weight	0,030192 kg
Dimensions	90 × 41 × 13 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Blue
Rated voltage	800V
Operating temperature	105°C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	Yes
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	3
Internally connected stages	No
Connectable conductor cross section solid-core	2.5mm2
Connectable conductor cross section fine-strand with cable end sleeve	2.5mm2
Connectable conductor cross section fine-strand without cable end sleeve	0.5mm2
Connectable conductor cross section multi-wired	0.5mm2
Material insulation body	Thermoplastic
Rated current In	76A
Explosion-tested version 'Ex e'	Yes
Brand	WAGO
SKU	545948
EAN	4017332076739
