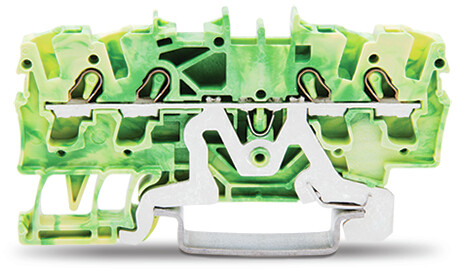

TOPJOBS 4-WIRE CONNECTOR 2.5 MM2 YELLOW-GREEN

Name: TOPJOBS 4-WIRE CONNECTOR 2.5 MM2 YELLOW-GREEN
Brand: WAGO
SKU: 538723
Availability: InStock

4,79 € VAT incl.

VAT incl. (21%)

Part No: 2002-1407

Brand: WAGO

2 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,0101 kg
Dimensions	70 × 36 × 6 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Green/yellow
Rated voltage	800V
Operating temperature	105°C
Inflammability class of insulation material according to with UL94	V0
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	4
Connectable conductor cross section solid-core	0.75mm2
Connectable conductor cross section fine-strand with cable end sleeve	0.75mm2
Connectable conductor cross section fine-strand without cable end sleeve	0.25mm2
Connectable conductor cross section multi-wired	0.25mm2
Material insulation body	Thermoplastic
Rated current In	24A
Brand	WAGO
SKU	538723
EAN	4017332999311
