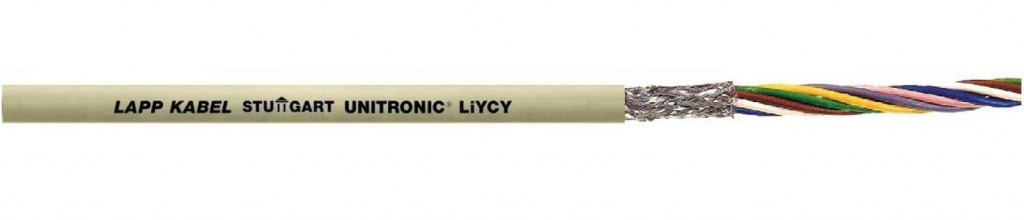

UNITRONIC LIYCY 3X1.0 GRAY CONTROL CABLE WIRE CABLE 300/300V CL.5 DRUM SHIELD COLOR CONDUCTORS
1,78 € VAT incl.
- VAT excl.
1,47 € VAT excl.
VAT incl. (21%)
Part No:
0034803
Brand:
LAPPKABEL
856 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Additional information
| Weight | 0,09 kg |
|---|---|
| Dimensions | 1000 × 6,8 × 6,8 mm |
| Nominal cross section conductor |
1mm2 |
| Material core insulation |
Polyvinyl chloride (PVC) |
| Core identification |
Colour |
| Flame retardant |
According to IEC/EN 60332-1-2 |
| Stranding element |
No |
| Colour outer sheath |
Grey |
| Conductor material | |
| Screen over stranding element |
None |
| Screen over stranding |
Braiding |
| Material outer sheath |
Polyvinyl chloride (PVC) |
| Conductor category |
Class 5 = flexible |
| Permitted cable outer temperature during assembling/handling |
-5°C |
| Permitted cable outer temperature after assembling without vibration |
-40°C |
| Number of cores |
3 |
| Outer diameter approx. |
6.8mm |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Min. permitted bending radius, moving application/free movement |
102mm |
| Min. permitted bending radius, stationary application/permanent installation |
40.8mm |
| Specification core insulation |
Other |
| Specification material outer sheath |
Other |
| Cable geometry |
Round |
| Brand | |
| SKU | 087755 |
| EAN | 4044773035469 |
