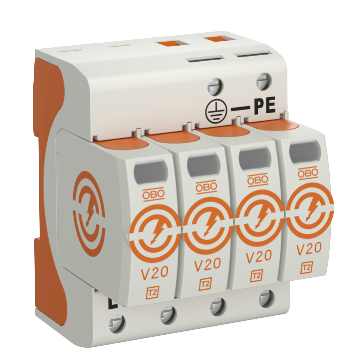

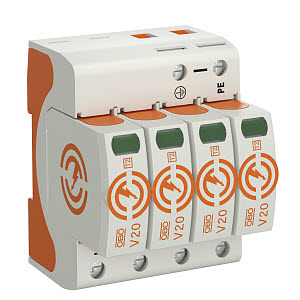

V20-4-280 SURGE ARRESTER T2 C 4P 4M 20/40KA 1.3KV TNS

Name: V20-4-280 SURGE ARRESTER T2 C 4P 4M 20/40KA 1.3KV TNS
Brand: OBO BETTERMANN
SKU: 666514
Availability: InStock

146,41 € VAT incl.

VAT incl. (21%)

Part No: 5095164

Brand: OBO BETTERMANN

13 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,54 kg
Dimensions	102 × 75 × 82 mm
Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	No
Number of conductors (without earthing)	4
Construction size	4 modular spacing
Voltage protection level	1.3kV
Max. continuous voltage AC	280V
Nominal discharge surge current (8/20)	20kA
Nominal voltage AC	230V
Voltage protection level L-N	1.3kV
Signalling at the device	Optical
Degree of protection (IP)	IP20
Max. conductor cross section solid (solid, stranded)	35mm2
Max. conductor cross section flexible (fine-strand)	35mm2
Max. discharge surge current (8/20)	40kA
Brand	OBO BETTERMANN
SKU	666514
EAN	4012196159833
