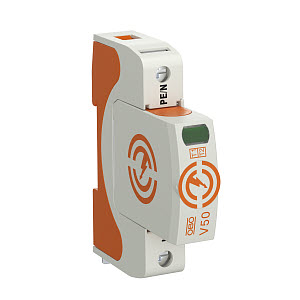

V50-1-280 OVERVOLTAGE ARRESTER T1+T2 B+C 1P 1M 30/50KA 1.3KV
93,99 € VAT incl.
- VAT excl.
77,68 € VAT excl.
VAT incl. (21%)
Part No:
5093500
Brand:
OBO BETTERMANN
15 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
Class B+C surge arresters combine the functions of protection against lightning surges (class B) and switching surges (class C). They provide comprehensive installation protection in one device. Used in residential and industrial buildings. They facilitate the design and implementation of installations.
Additional information
| Weight | 0,196 kg |
|---|---|
| Dimensions | 103 × 85 × 40 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Surge current (10/350 µs) |
12.5kA |
| Number of poles |
1 |
| Construction size |
1 modular spacing |
| Voltage protection level |
1.3kV |
| With signaling contact |
No |
| Max. continuous voltage AC |
280V |
| Nominal voltage AC |
230V |
| Nominal voltage DC |
350V |
| Test class |
Type 1 + 2 |
| Voltage protection level L-N |
1.3kV |
| Signalling at the device |
Optical |
| Degree of protection (IP) |
IP20 |
| Max. conductor cross section solid (solid, stranded) |
35mm2 |
| Max. conductor cross section flexible (fine-strand) |
35mm2 |
| System configuration DC |
No |
| System configuration IT |
No |
| System configuration TN |
Yes |
| System configuration TN-C |
Yes |
| System configuration TN-S |
Yes |
| System configuration TT |
Yes |
| System configuration TN-C-S |
Yes |
| Brand | |
| SKU | 650104 |
| EAN | 4012196412952 |
