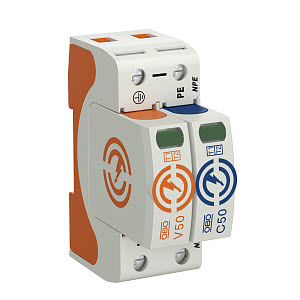

V50-1+NPE-280 OVERVOLTAGE ARRESTER

174,17  VAT incl.

VAT incl. (21%)

Part No: 5093522
Brand: OBO BETTERMANN

18 in stock

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

Class B+C surge arresters combine the functions of protection against lightning surges (class B) and switching surges (class C). They provide comprehensive installation protection in one device. Used in residential and industrial buildings. They facilitate the design and implementation of installations.

Additional information
Weight 0,303 kg
Dimensions 80 × 80 × 30 mm
Mounting method

DIN rail (top hat rail) 35 mm

Surge current (10/350 µs)

12.5kA

Number of poles

2

Construction size

2 modular spacing

Voltage protection level

1.3kV

With signaling contact

No

Follow current extinguishing capability

0.1kA

Max. continuous voltage AC

280V

Nominal voltage AC

230V

Voltage protection level L-N

1.3kV

Signalling at the device

Optical

Degree of protection (IP)

IP20

Max. conductor cross section solid (solid, stranded)

35mm2

Max. conductor cross section flexible (fine-strand)

35mm2

System configuration DC

No

System configuration IT

No

System configuration TN

Yes

System configuration TN-C

No

System configuration TN-S

Yes

System configuration TT

Yes

System configuration TN-C-S

Yes

Brand

SKU 667556
EAN 4012196159666
