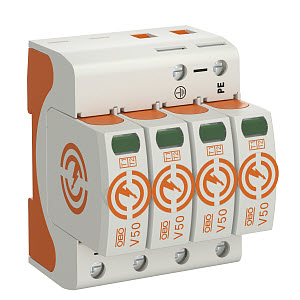

V50-4-280 CLASS B+C 4P TYPE 1+2 SURGE ARRESTER

Name: V50-4-280 CLASS B+C 4P TYPE 1+2 SURGE ARRESTER
Brand: OBO BETTERMANN
SKU: 683098
Availability: InStock

340,74 € VAT incl.

VAT incl. (21%)

Part No: 5093513

Brand: OBO BETTERMANN

14 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,61 kg
Dimensions	100 × 75 × 85 mm
Mounting method	DIN rail (top hat rail) 35 mm
Number of poles	4
Construction size	4 modular spacing
Voltage protection level	1.3kV
Max. continuous voltage AC	280V
Nominal voltage AC	230V
Nominal voltage DC	350V
Test class	Type 1 + 2
Voltage protection level L-N	1.3kV
Signalling at the device	Optical
Degree of protection (IP)	IP20
Max. conductor cross section solid (solid, stranded)	35mm2
Max. conductor cross section flexible (fine-strand)	35mm2
System configuration DC	No
System configuration IT	No
System configuration TN	Yes
Brand	OBO BETTERMANN
SKU	683098
EAN	4012196159628
