Weight	0,313 kg
Dimensions	148 × 67 × 35 mm
Switching function	Quick-break switch
Rated operation current Ie at AC-15, 230 V	3A
Rated operation current Ie at DC-13, 230 V	0.27A
Housing material	Metal
Coating housing	Other
Type of interface for safety communication	None
Type of electric connection	Cable entry PG
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Special construction
Degree of protection (IP)	IP66/IP67
Number of safety auxiliary contacts	0
Type of control element	Roller lever
Type of interface	None
Width sensor	64mm
Height of sensor	64mm
Length of sensor	30mm
Ambient temperature during operating	-25°C
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0
Alignment of the control element	Other
SKU	057835
EAN	3389110646450

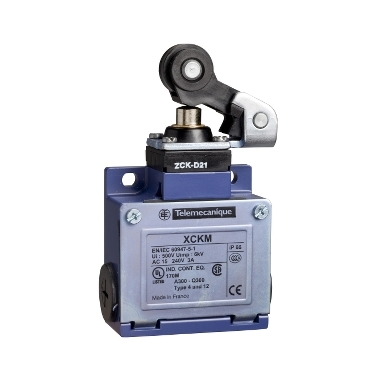

XCKM121 LIMIT SWITCH 2P 1Z+1R LINEAR SNAP ACTION LEVER WITH ROLLER PLASTIC WITH SELF-RETURN PG11 IP66
