JB-500 3G2.5 ŻO GREY LINE CORD 300/500V CL.5 COLOURED CONDUCTORS
1464,21 € VAT incl.

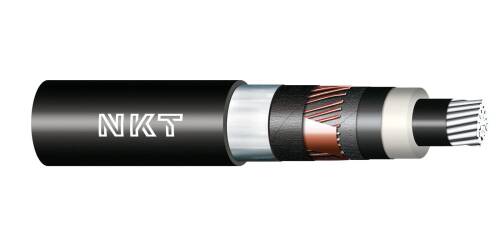

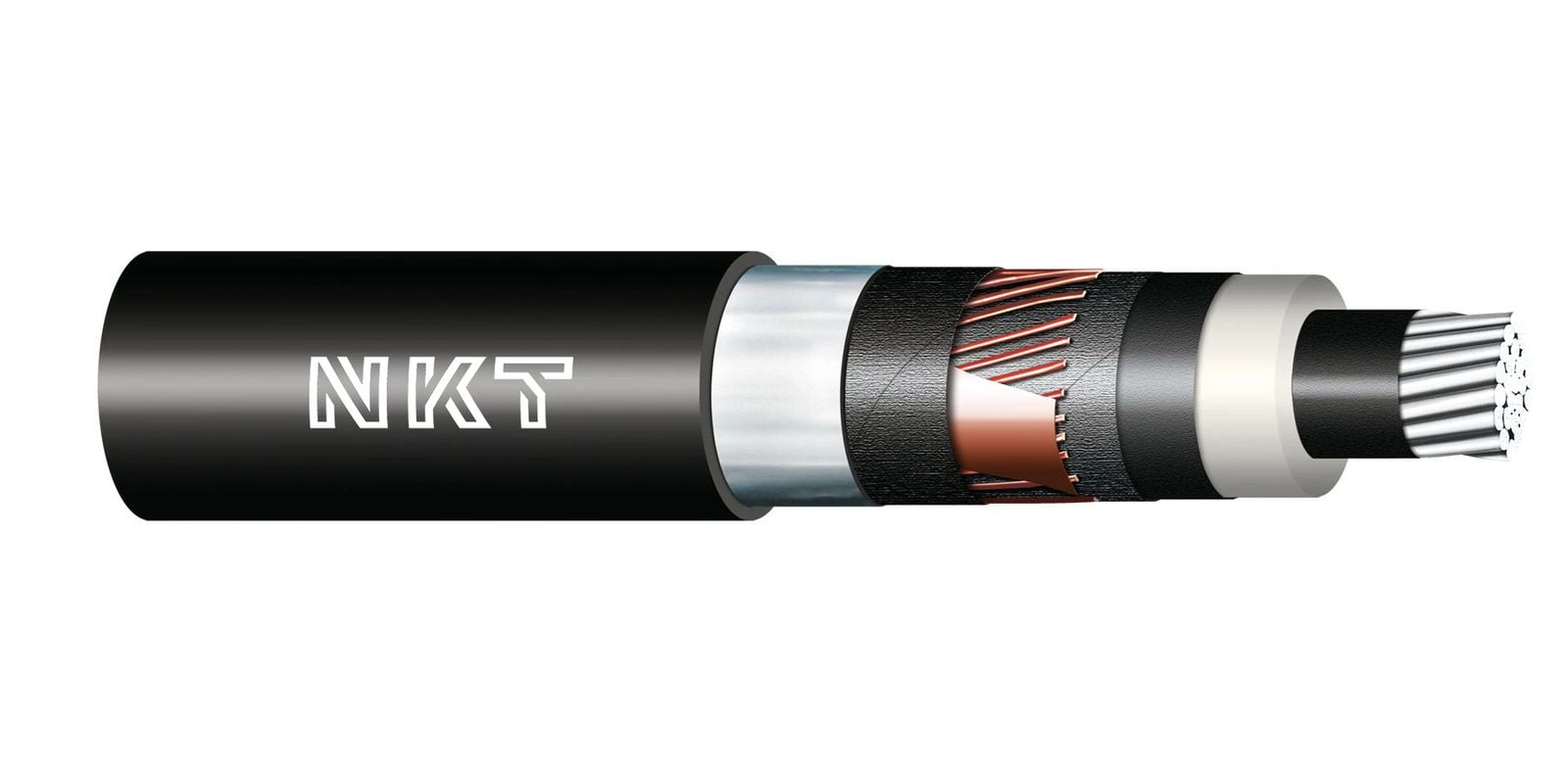

XRUHAKXS 1X120.0/50.0 BLACK SINGLE CORE CABLE AL 12/20KV CL.2 WITH COAXIAL RETURN CONDUCTOR CU
18006,72 € VAT incl.
- VAT excl.
14881,59 € VAT excl.
VAT incl. (21%)
RRP price:
28484,66 €
Part No:
120325009
Brand:
NKT
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Description
XRUHAKXS 1X120/50 12/20 KV
Additional information
| Weight | 1530 kg |
|---|---|
| Dimensions | 1200 × 1200 × 710 mm |
| Nominal cross section conductor |
120mm2 |
| Material core insulation |
Other |
| Weight |
1530kg/km |
| Flame retardant |
No |
| Armouring |
No |
| Lead sheath |
No |
| Nominal voltage U |
20kV |
| Colour outer sheath |
Black |
| Conductor material |
Aluminium |
| Material outer sheath |
Other |
| Conductor category |
Class 2 = stranded |
| Laminated sheath |
Yes |
| Fibre optic elements |
No |
| Nominal voltage U0 |
12kV |
| Number of cores |
1 |
| Max. conductor temperature |
90°C |
| Outer diameter approx. |
36mm |
| Low smoke (according to EN 61034-2) |
No |
| Conductive coating |
No |
| Cable geometry |
Round |
| Brand | |
| SKU | 682543 |
| EAN | 8590225120451 |
