Weight	1520 kg
Dimensions	2100 × 2100 × 1000 mm
Nominal cross section conductor	120mm2
Core identification	None
Weight	1524kg/km
Lead sheath	No
Drain wire	Yes
Nominal voltage U	20kV
Shape of conductor	Round
Conductor material	Aluminium
Material outer sheath	Polyolefin
Conductor category	Class 2 = stranded
Laminated sheath	Yes
Fibre optic elements	No
Nominal cross section pilot/reduced conductors	50mm2
Number of pilot/reduced conductors	1
Inner semi-conducting layer	No
Outer semi-conducting layer	No
Longitudinal water blocking screen	Yes
Nominal voltage U0	12kV
Screen	Yes
Number of cores	1
Longitudinal water blocking conductors	Yes
Concentric conductor	Copper
Outer diameter approx.	35mm
With protective conductor	No
Conductive coating	No
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Fca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	525mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Polyethylene (PE)
Cable geometry	Round
Suitable as installation cable	No
Certified for shipboard application	No
Suitable as medium-voltage cable	Yes
Suitable as high-voltage cable	No

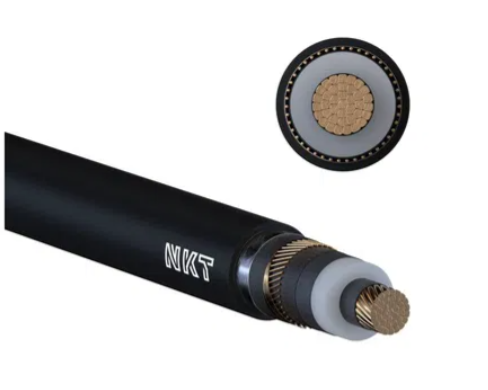

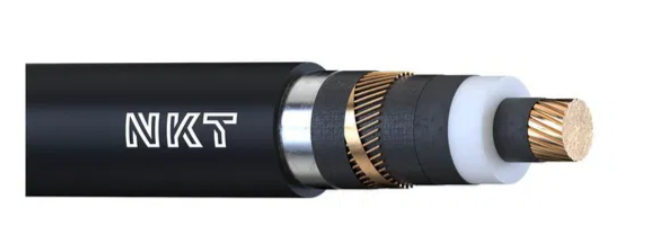

XRUHAKXS 1X120/50 RMC BLACK SINGLE CORE CABLE AL 12/20KV CL.2 WITH RETURN CONDUCTOR CU PN-HD 10R
