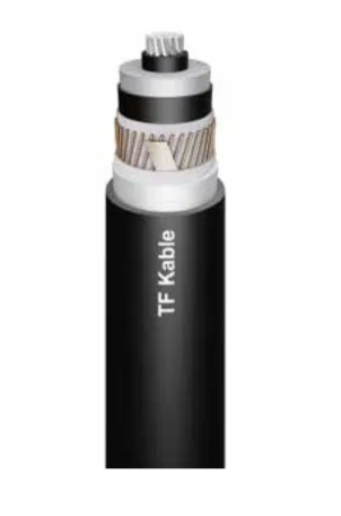

XRUHAKXS1 NA2XS(FL)2Y 1X120/25 RMC CZARNY KABEL AL 12/20KV KL.2 Z ŻYŁĄ POWROTNĄ CU PN-HD 10R
14432,43 € VAT incl.
- VAT excl.
11927,63 € VAT excl.
VAT incl. (21%)
Part No:
G-104996
Brand:
TELE-FONIKA
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Additional information
| Dimensions | 1 mm |
|---|---|
| Nominal cross section conductor |
120mm2 |
| Core identification |
None |
| Weight |
1490kg/km |
| Lead sheath |
No |
| Drain wire |
Yes |
| Nominal voltage U |
20kV |
| Shape of conductor |
Round |
| Conductor material |
Aluminium |
| Material outer sheath |
Polyolefin |
| Conductor category |
Class 2 = stranded |
| Laminated sheath |
Yes |
| Fibre optic elements |
No |
| Nominal cross section pilot/reduced conductors |
25mm2 |
| Number of pilot/reduced conductors |
1 |
| Inner semi-conducting layer |
Yes |
| Outer semi-conducting layer |
Yes |
| Longitudinal water blocking screen |
Yes |
| Nominal voltage U0 |
12kV |
| Screen |
Yes |
| Number of cores |
1 |
| Longitudinal water blocking conductors |
Yes |
| Nominal cross section concentric conductor |
25mm2 |
| Concentric conductor |
Copper |
| Outer diameter approx. |
34mm |
| With protective conductor |
No |
| Conductive coating |
No |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Fca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| Min. permitted bending radius, stationary application/permanent installation |
510mm |
| Specification core insulation |
Crosslinked polyethylene (XLPE) |
| Specification material outer sheath |
Crosslinked polyethylene (XLPE) |
| Cable geometry |
Round |
| Certified for shipboard application |
No |
| Suitable as medium-voltage cable |
Yes |
| Suitable as high-voltage cable |
No |
| Certified as airport lighting cable |
No |
| Brand | |
| SKU | 3106969 |
| EAN | 3106969 |
