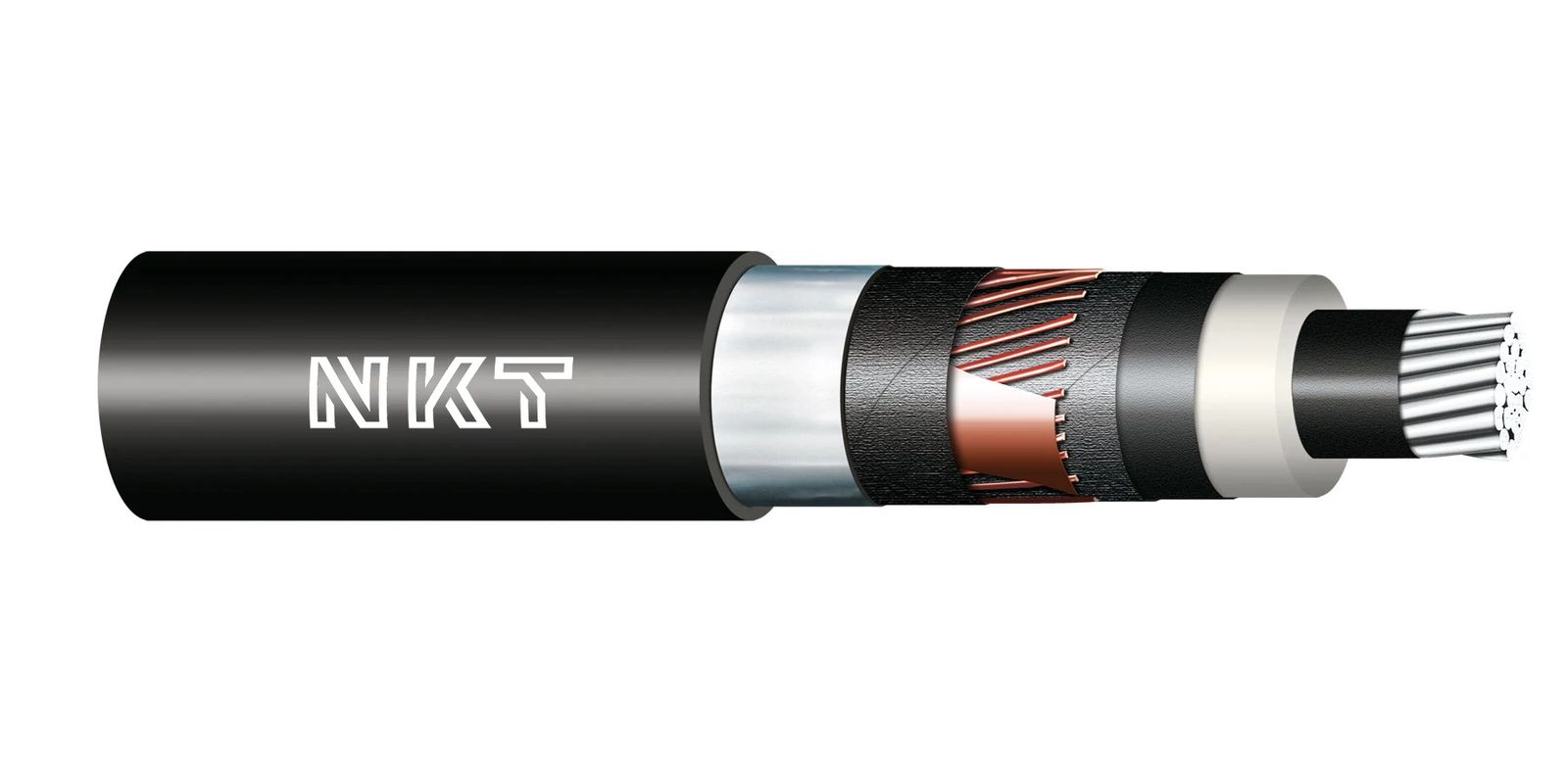

XRUHAKXS1 NA2XS(FL)2Y 1X240/50 RMC CZARNY KABEL AL 12/20KV KL.2 Z ŻYŁĄ POWROTNĄ CU PN-HD 10R
32620,68 € VAT incl.
- VAT excl.
26959,24 € VAT excl.
VAT incl. (21%)
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Designed for energy transmission in medium voltage networks. They offer high durability and operational reliability. Used in energy transmission, power supply for industrial plants and urban infrastructure, and the like. They can be placed directly in the ground, although it is recommended to lay them down. in pipes, channels.
| Dimensions | 1 mm |
|---|---|
| Nominal cross section conductor |
240mm2 |
| Core insulation material |
Mica + crosslinked polyethylene (XLPE) |
| Core identification |
None |
| Weight |
1970kg/km |
| Lead sheath |
No |
| Drain wire |
Yes |
| Nominal voltage U |
20kV |
| Color of coating/insulation |
Black |
| Shape of conductor |
Round |
| Conductor material |
Aluminium |
| Material outer sheath |
Polyolefin |
| Conductor category |
Class 2 = stranded |
| Laminated sheath |
Yes |
| Fibre optic elements |
No |
| Permissible ambient temperature of the cable during installation |
-20°C |
| Permissible ambient temperature of the cable after installation (without vibration) |
-20°C |
| Number of pilot/reduced conductors |
1 |
| Inner semi-conducting layer |
No |
| Outer semi-conducting layer |
No |
| Longitudinal water blocking screen |
Yes |
| Nominal voltage U0 |
12kV |
| Screen |
Yes |
| Number of cores |
1 |
| Longitudinal water blocking conductors |
Yes |
| Nominal cross section concentric conductor |
50mm2 |
| Halogen-free according to IEC 60754-2 |
Yes |
| Concentric conductor |
Copper |
| Low smoke emissions in accordance with IEC 61034-2 |
No |
| Maximum allowable core temperature |
90°C |
| Outer diameter approx. |
40mm |
| With protective conductor |
No |
| Conductive coating |
No |
| Oil-resistant (according to IEC 60811-404) |
No |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Fca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| Min. permitted bending radius, stationary application/permanent installation |
600mm |
| Specification core insulation |
Crosslinked polyethylene (XLPE) |
| Specification material outer sheath |
Crosslinked polyethylene (XLPE) |
| Cable geometry |
Round |
| Suitable as medium-voltage cable |
Yes |
| Cable packaging |
Drum |
| Commercial designation |
XRUHAKXS NA2XS(FL)2Y |
| Brand | |
| SKU | 3126352 |
| EAN | 8590225328215 |
