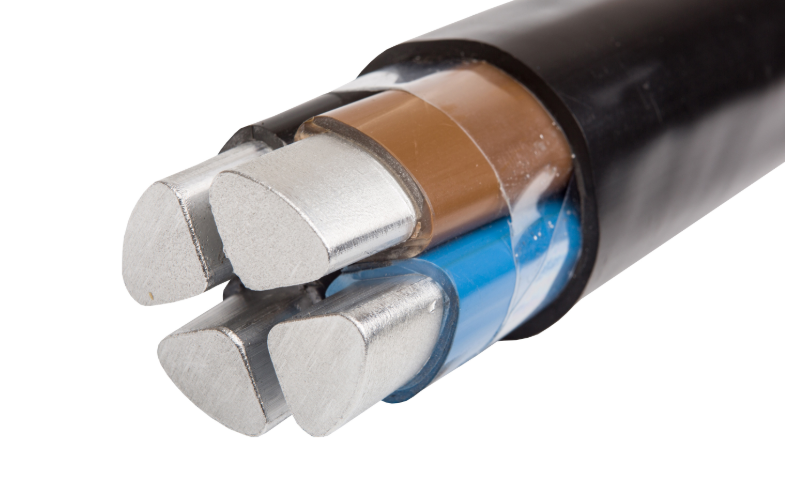

YAKXS 4X 25 SE CZARNY KABEL ZIEMNY AL DRUT 0.6/1KV USIECIOWANY SEKTOROWY KL.2
4234,83 € VAT incl.
- VAT excl.
3499,86 € VAT excl.
VAT incl. (21%)
Part No:
5907749709612
Brand:
ELEKTROKABEL
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Additional information
| Weight | 477 kg |
|---|---|
| Dimensions | 900 × 900 × 450 mm |
| Nominal cross section conductor |
25mm2 |
| Core insulation material |
Mica + crosslinked polyethylene (XLPE) |
| Core identification |
Colour |
| Weight |
526kg/km |
| Lead sheath |
No |
| Drain wire |
No |
| Nominal voltage U |
1000V |
| Color of coating/insulation |
Black |
| Shape of conductor |
Sector-shaped |
| Conductor material |
Aluminium |
| Material outer sheath |
Polyvinyl chloride (PVC) |
| Conductor category |
Class 2 = stranded |
| Armouring/reinforcement |
None |
| Permissible ambient temperature of the cable during installation |
-5°C |
| Permissible ambient temperature of the cable after installation (without vibration) |
-35°C |
| Number of pilot/reduced conductors |
0 |
| Core colour |
Black |
| Nominal voltage U0 |
600V |
| Screen |
No |
| Number of cores |
4 |
| For underground installations |
Yes |
| Halogen-free according to IEC 60754-2 |
No |
| Low smoke emissions in accordance with IEC 61034-2 |
No |
| Maximum allowable core temperature |
90°C |
| Protective barrier |
None |
| Outer diameter approx. |
20.4mm |
| With protective conductor |
No |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| Min. permitted bending radius, stationary application/permanent installation |
244.8mm |
| Specification core insulation |
Crosslinked polyethylene (XLPE) |
| Specification material outer sheath |
Other |
| Twisted cores |
No |
| Cable geometry |
Round |
| Core identification according to HD 308 S2 |
Yes |
| Suitable as installation cable |
No |
| Certified for shipboard application |
No |
| Certified as airport lighting cable |
No |
| Cable packaging |
Drum |
| Commercial designation |
YAKXS |
| Brand | |
| SKU | 3140839 |
| EAN | 5907749709612 |
