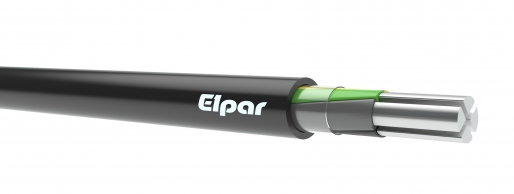

YAKXS 4X 50.0 SE BLACK GROUND CABLE AL WIRE 0.6/1KV CROSS-LINKED SECTOR CABLE CL.1

Name: YAKXS 4X 50.0 SE BLACK GROUND CABLE AL WIRE 0.6/1KV CROSS-LINKED SECTOR CABLE CL.1
Brand: ELPAR
SKU: 669301
Availability: InStock

6315,24 € VAT incl.

VAT incl. (21%)

RRP price: 6315,24 €

Part No: YAKXS-4X50-SE-KV

Brand: ELPAR

Request the product

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Request the product

Additional information

Weight	720 kg
Dimensions	1400 × 1400 × 710 mm
Nominal cross section conductor	50mm2
Material core insulation	Other
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	1000V
Colour outer sheath	Black
Shape of conductor	Round
Diameter conductor	24.7mm
Conductor material	Aluminium
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	600V
Number of cores	4
Max. conductor temperature	90°C
Protective barrier	None
Outer diameter approx.	24.7mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	296.4mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	669301
EAN	5901854411293
