Weight	560 kg
Dimensions	2500 × 2500 × 1250 mm
Nominal cross section conductor	240mm2
Material core insulation	Polyolefin
Core identification	Colour
Weight	3506kg/km
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	No
Nominal voltage U	1kV
Colour outer sheath	Black
Shape of conductor	Sector-shaped
Conductor material	Aluminium
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Permitted cable outer temperature during assembling/handling	-5°C
Permitted cable outer temperature after assembling without vibration	-35°C
Number of pilot/reduced conductors	0
Nominal voltage U0	0.6kV
Number of cores	4
Concentric conductor	None
Max. conductor temperature	90°C
Outer diameter approx.	49.3mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	592mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Cable geometry	Round
Brand	NKT
SKU	713462
EAN	8591462026551

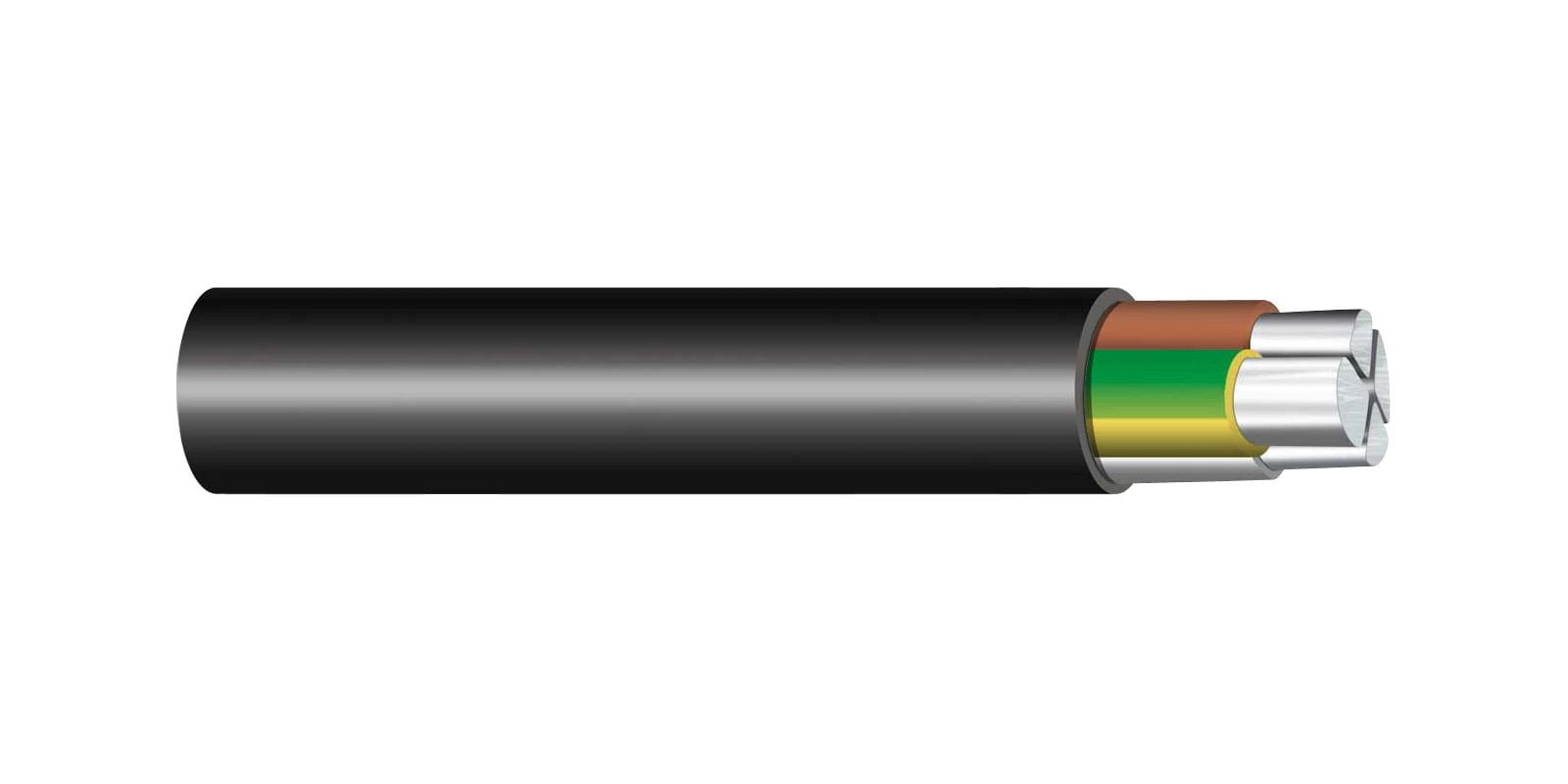

YAKXS 4X240.0 SE BLACK GROUND CABLE AL WIRE 0.6/1KV CROSS-LINKED SECTOR CABLE CL.1
