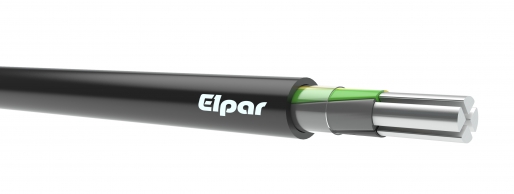

YAKXS 5X 16.0 ŻO RE BLACK EARTH CABLE AL WIRE 0.6/1KV CROSS-LINKED CL.1 ENERGYPAR

Name: YAKXS 5X 16.0 ŻO RE BLACK EARTH CABLE AL WIRE 0.6/1KV CROSS-LINKED CL.1 ENERGYPAR
Brand: ELPAR
SKU: 916307
Availability: InStock

3301,91 € VAT incl.

VAT incl. (21%)

Part No: YAKXS-5X16-RE(ŻO)-1KV ENERGYPAR

Brand: ELPAR

Request the product

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Request the product

Additional information

Weight	666 kg
Dimensions	1200 × 1200 × 700 mm
Nominal cross section conductor	16mm2
Material core insulation	Other
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	1000V
Colour outer sheath	Black
Shape of conductor	Round
Diameter conductor	20.3mm
Conductor material	Aluminium
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	600V
Number of cores	5
Max. conductor temperature	90°C
Protective barrier	None
Outer diameter approx.	20.3mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	243.6mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	916307
EAN	5901854411330
