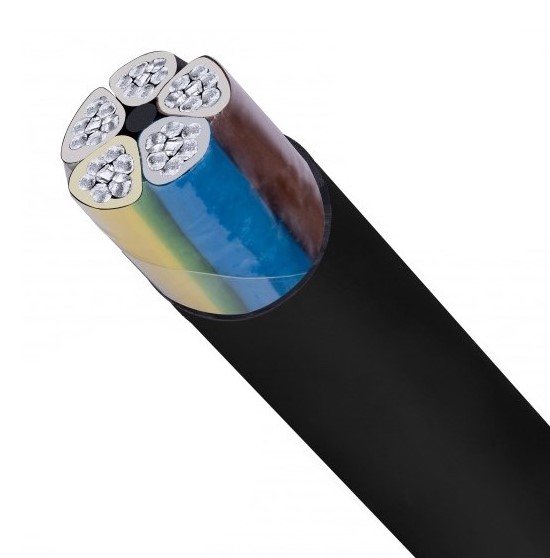

YAKXS 5X 16 ŻO RE CZARNY KABEL ZIEMNY AL DRUT 0.6/1KV USIECIOWANY KL.1 HD
3116,68 € VAT incl.
- VAT excl.
2575,77 € VAT excl.
VAT incl. (21%)
Brand:
ROMCAB
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Additional information
| Weight | 609 kg |
|---|---|
| Dimensions | 1400 × 1400 × 710 mm |
| Nominal cross section conductor |
16mm2 |
| Core insulation material |
Mica + crosslinked polyethylene (XLPE) |
| Core identification |
Colour |
| Weight |
514kg/km |
| Lead sheath |
No |
| Drain wire |
No |
| Nominal voltage U |
1000V |
| Color of coating/insulation |
Black |
| Shape of conductor |
Round |
| Conductor material |
Aluminium |
| Material outer sheath |
Polyvinyl chloride (PVC) |
| Conductor category |
Class 1 = solid |
| Armouring/reinforcement |
None |
| Permissible ambient temperature of the cable during installation |
-5°C |
| Permissible ambient temperature of the cable after installation (without vibration) |
-30°C |
| Number of pilot/reduced conductors |
0 |
| Core colour |
Black |
| Nominal voltage U0 |
600V |
| Screen |
No |
| Number of cores |
5 |
| For underground installations |
Yes |
| Halogen-free according to IEC 60754-2 |
No |
| Low smoke emissions in accordance with IEC 61034-2 |
No |
| Maximum allowable core temperature |
90°C |
| Protective barrier |
None |
| Outer diameter approx. |
19.7mm |
| With protective conductor |
Yes |
| Oil-resistant (according to IEC 60811-404) |
No |
| Low temperature resistant according to EN 60811-504+505+506 |
No |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| Min. permitted bending radius, stationary application/permanent installation |
295.5mm |
| Specification core insulation |
Crosslinked polyethylene (XLPE) |
| Specification material outer sheath |
Other |
| Twisted cores |
No |
| Cable geometry |
Round |
| Core identification according to HD 308 S2 |
Yes |
| Suitable as installation cable |
No |
| Certified for shipboard application |
No |
| Certified as airport lighting cable |
No |
| Cable packaging |
Drum |
| Commercial designation |
YAKXS |
| Brand | |
| SKU | 3146314 |
| EAN | 3146314 |
