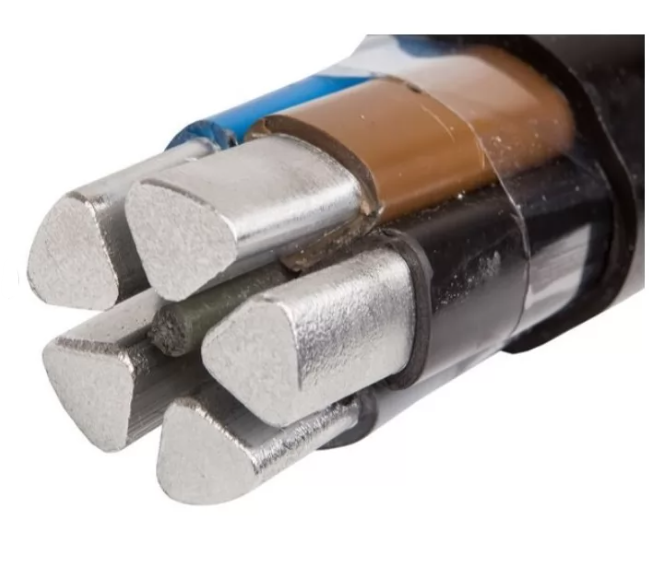

YAKXS 5X 35 ŻO RE CZARNY KABEL ZIEMNY AL DRUT 0.6/1KV USIECIOWANY KL.1

Name: YAKXS 5X 35 ŻO RE CZARNY KABEL ZIEMNY AL DRUT 0.6/1KV USIECIOWANY KL.1
Brand: ROMCAB
SKU: 3133889
Availability: InStock

4889,86 € VAT incl.

VAT incl. (21%)

Part No: 501777

Brand: ROMCAB

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	1250 kg
Dimensions	1400 × 1400 × 710 mm
Nominal cross section conductor	35mm2
Core identification	Colour
Weight	5250kg/km
Lead sheath	No
Drain wire	No
Nominal voltage U	1000V
Shape of conductor	Round
Conductor material	Aluminium
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Number of pilot/reduced conductors	0
Core colour	Black
Nominal voltage U0	600V
Screen	No
Number of cores	5
Protective barrier	None
Outer diameter approx.	27mm
With protective conductor	No
Low temperature resistant according to EN 60811-504+505+506	No
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	326mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Twisted cores	No
Cable geometry	Round
Core identification according to HD 308 S2	Yes
Suitable as installation cable	No
Certified for shipboard application	No
Certified as airport lighting cable	No
Brand	ROMCAB
SKU	3133889
EAN	3133889
