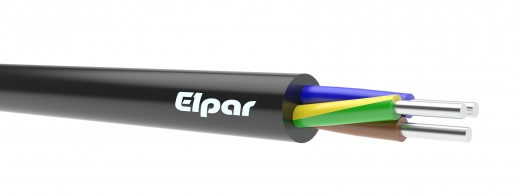

YAKY 4X240.0 SE BLACK GROUND CABLE AL WIRE 0.6/1KV SECTOR CABLE CL.1

Name: YAKY 4X240.0 SE BLACK GROUND CABLE AL WIRE 0.6/1KV SECTOR CABLE CL.1
Brand: ELPAR
SKU: 709537
Availability: InStock

26873,70 € VAT incl.

VAT incl. (21%)

Part No: YAKY-4X240-1KV NAYY ENERGYPAR

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Nominal cross section conductor	240mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	1000V
Colour outer sheath	Black
Shape of conductor	Round
Diameter conductor	50.5mm
Conductor material	Aluminium
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	600V
Number of cores	4
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	50.5mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	606mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	709537
EAN	5901854411736
