Nominal cross section conductor	2.5mm2
Core identification	Colour
Weight	128kg/km
Nominal voltage U	750V
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Core colour	Several
Nominal voltage U0	450V
Number of cores	2
Protective barrier	None
Outer diameter approx.	8.88mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Identification/coding colour core	Other
Brand	NKT
SKU	3118152
EAN	5907802041055

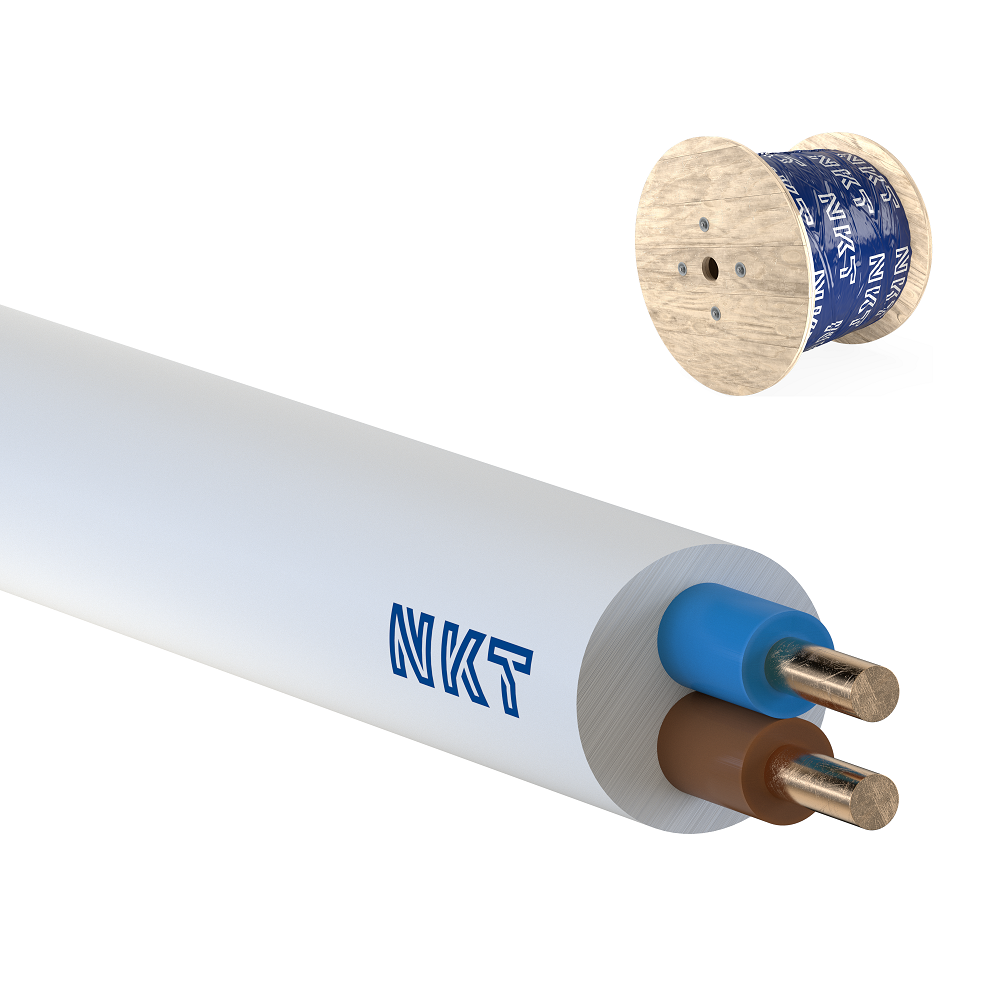

YDY 2X 2.5 WHITE INSTALLATION CABLE ROUND WIRE 450/750V CL.1 DRUM
