Weight	158 kg
Dimensions	1000 × 11 × 11 mm
Nominal cross section conductor	2.5mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	155kg/km
Flame retardant	According to IEC/EN 60332-1-2
Lead sheath	No
Circuit integrity	None
Nominal voltage U	750V
Colour outer sheath	White
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	5°C
Permitted cable outer temperature after assembling without vibration	-40°C
Core colour	Several
Nominal voltage U0	450V
Number of cores	3
Suspension element	None
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	9.35mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Identification/coding colour core	Other
Brand	NKT
SKU	533483
EAN	5907802009253

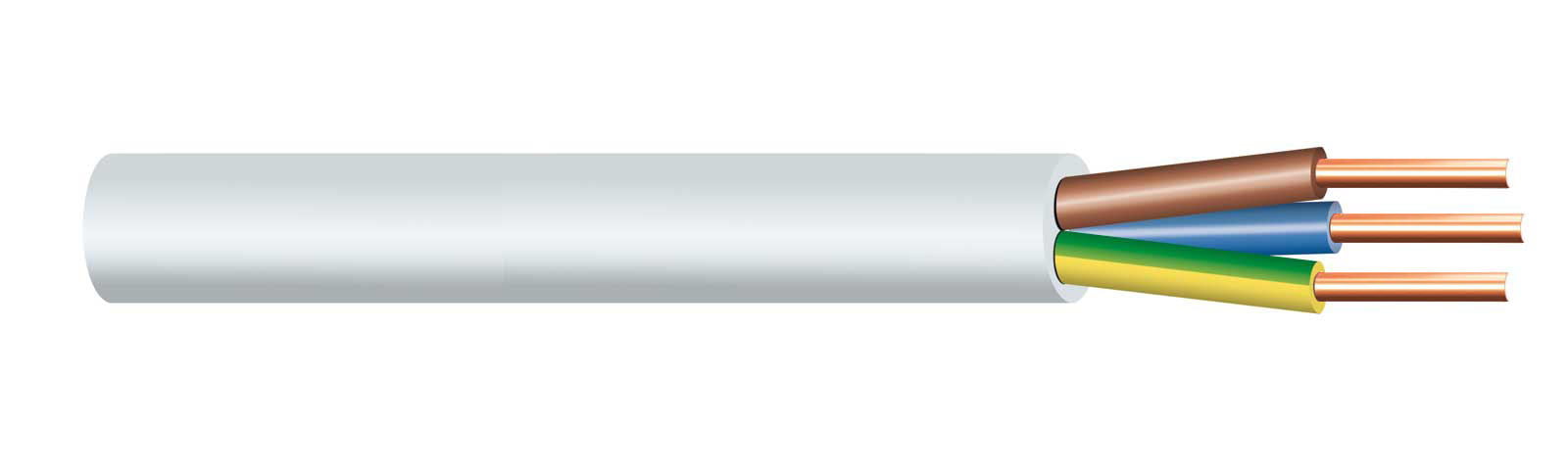

YDY 3X 2.5 ŻO NKT WHITE INSTALLATION CABLE ROUND WIRE 450/750V CL.1 DRUM
