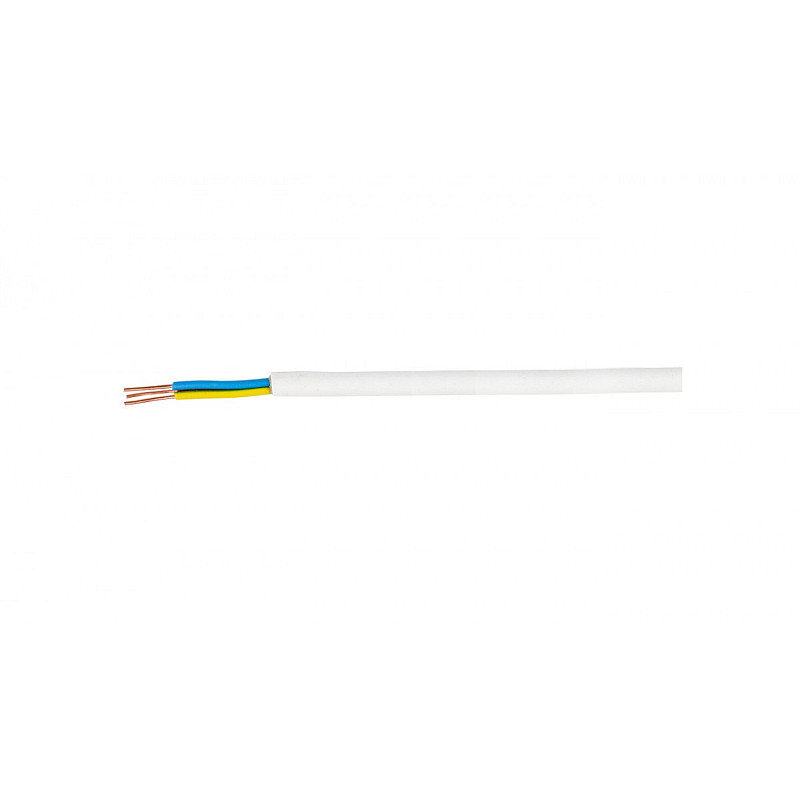

YDY 3X 2.5 ŻO WHITE INSTALLATION CABLE ROUND WIRE 450/750V CL.1 DRUM

Name: YDY 3X 2.5 ŻO WHITE INSTALLATION CABLE ROUND WIRE 450/750V CL.1 DRUM
Brand: ELEKTROKABEL
SKU: 3116617
Availability: InStock

1778,28 € VAT incl.

VAT incl. (21%)

Part No: 5907749704686

Brand: ELEKTROKABEL

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Nominal cross section conductor	2.5mm2
Core identification	Colour
Weight	158kg/km
Lead sheath	No
Drain wire	No
Nominal voltage U	750V
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Core colour	White
Nominal voltage U0	450V
Screen	No
Number of cores	3
Protective barrier	None
Outer diameter approx.	9.5mm
With protective conductor	Yes
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	95mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Suitable as installation cable	Yes
Brand	ELEKTROKABEL
SKU	3116617
EAN	5907749704686
