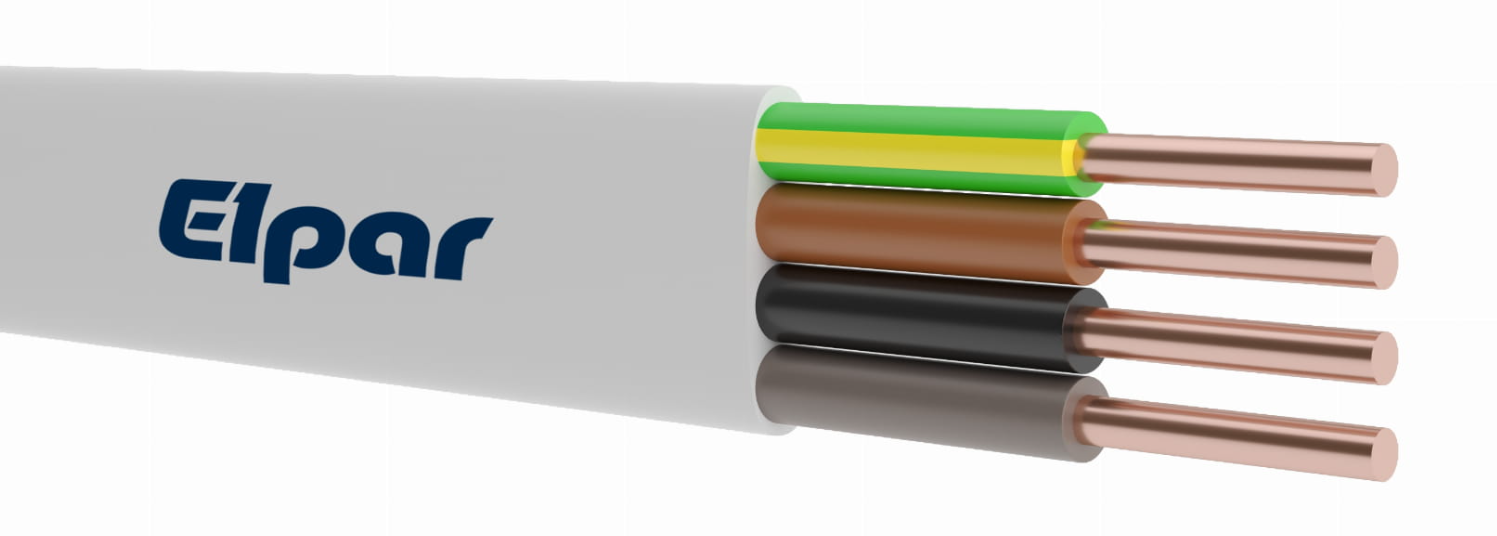

YDYP 4X 1.0 ŻO WHITE INSTALLATION CABLE FLAT WIRE 450/750V CL.1

Name: YDYP 4X 1.0 ŻO WHITE INSTALLATION CABLE FLAT WIRE 450/750V CL.1
Brand: ELPAR
SKU: 3037105
Availability: InStock

1063,75 € VAT incl.

VAT incl. (21%)

Part No: YDYP7-4X1(ŻO)

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	12 kg
Dimensions	400 × 400 × 80 mm
Nominal cross section conductor	1mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	750V
Colour outer sheath	White
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	450V
Number of cores	4
Max. conductor temperature	70°C
Protective barrier	None
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	79.2mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Flat
Brand	ELPAR
SKU	3037105
EAN	5901854413020
