Weight	340 kg
Dimensions	600 × 600 × 400 mm
Nominal cross section conductor	4mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	341kg/km
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	750V
Colour outer sheath	White
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Permitted cable outer temperature after assembling without vibration	-40°C
Core colour	Several
Nominal voltage U0	450V
Number of cores	5
Max. conductor temperature	70°C
Protective barrier	None
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	4mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Flat
Identification/coding colour core	Other
Brand	NKT
SKU	3042956
EAN	5907802038833

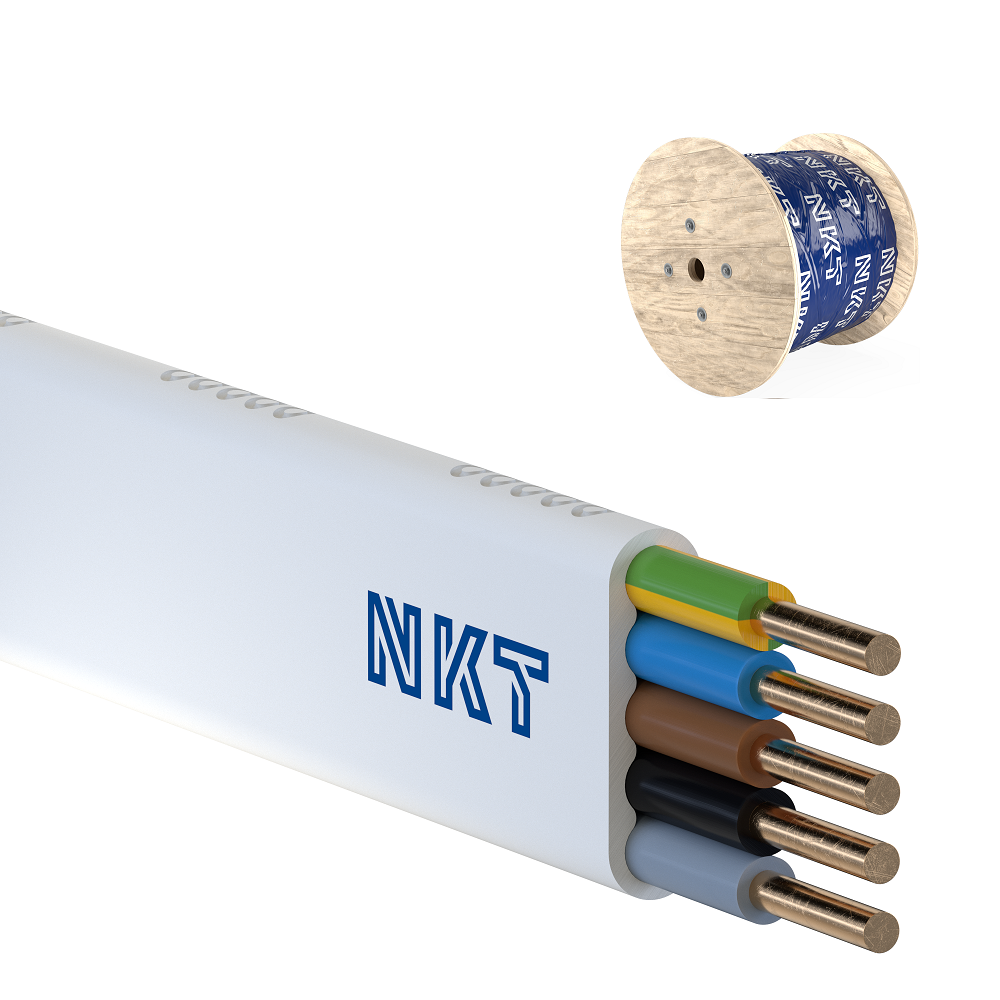

YDYP 5X 4.0 ŻO WHITE INSTALLATION CABLE FLAT WIRE 450/750V CL.1 DRUM
