Weight	520 kg
Dimensions	700 × 700 × 350 mm
Nominal cross section conductor	6mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	450kg/km
Flame retardant	According to IEC/EN 60332-1-2
Drain wire	No
Circuit integrity	None
Nominal voltage U	750V
Colour outer sheath	White
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Permitted cable outer temperature after assembling without vibration	-40°C
Core colour	White
Nominal voltage U0	450V
Screen	No
Number of cores	5
Max. conductor temperature	70°C
Protective barrier	None
Low smoke (according to EN 61034-2)	No
Halogen free according to EN 60754-1/2	No
Oil resistant according to EN IEC 60811-404	No
Low temperature resistant according to EN 60811-504+505+506	No
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
AWG size	10
Min. permitted bending radius, stationary application/permanent installation	4mm
Specification core insulation	Other
Specification material outer sheath	Other
Twisted cores	No
Cable geometry	Flat
Identification/coding colour core	Other

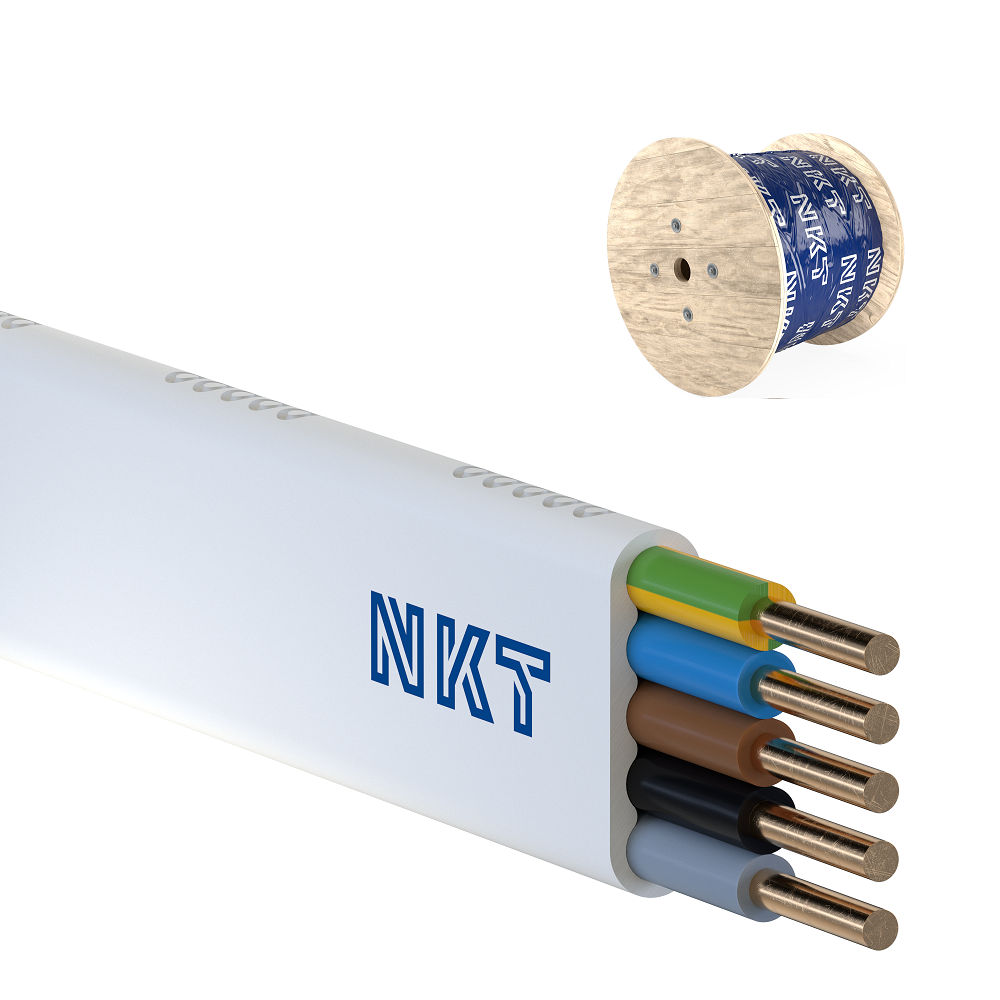

YDYP 5X 6.0 ŻO WHITE INSTALLATION CABLE FLAT WIRE 450/750V CL.1 DRUM
