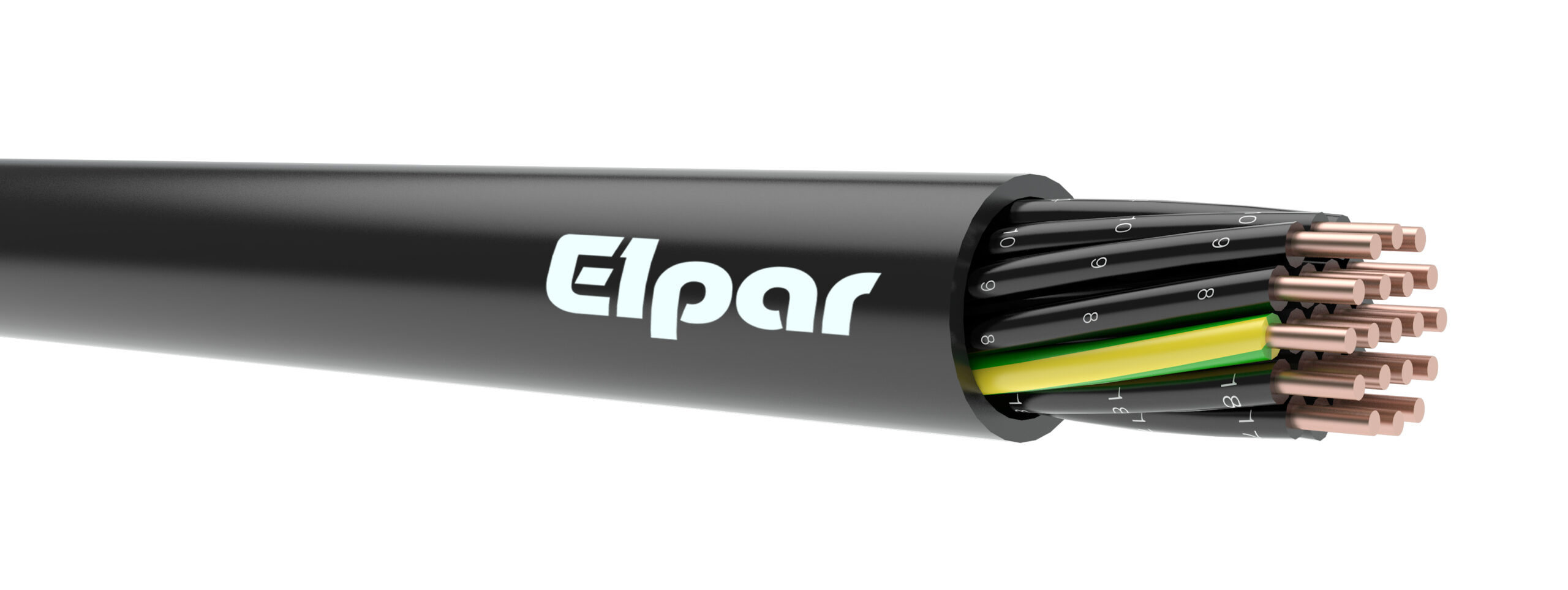

YKSY 7X 1.5 ŻO BLACK SIGNAL CABLE 0.6/1KV DRUM NUMBERED CONDUCTORS

Name: YKSY 7X 1.5 ŻO BLACK SIGNAL CABLE 0.6/1KV DRUM NUMBERED CONDUCTORS
Brand: ELPAR
SKU: 941288
Availability: OutOfStock

3265,28 € VAT incl.

VAT incl. (21%)

Part No: YKSY-7X1,5(ŻONR)-1KV NYY

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	220 kg
Dimensions	900 × 900 × 560 mm
Nominal cross section conductor	1.5mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Numbers
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	1000V
Colour outer sheath	Black
Shape of conductor	Round
Diameter conductor	12.7mm
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Black
Nominal voltage U0	600V
Number of cores	7
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	12.7mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	127mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	941288
EAN	5901854414027
