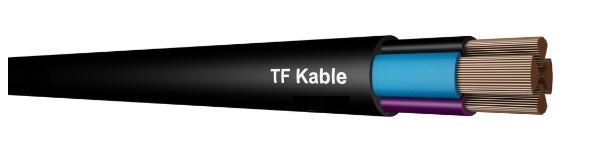

YKXS 4X 35.0 SM BLACK GROUND CABLE CU WIRE 0.6/1KV CROSS-LINKED SECTOR CABLE CL.2 HD

Name: YKXS 4X 35.0 SM BLACK GROUND CABLE CU WIRE 0.6/1KV CROSS-LINKED SECTOR CABLE CL.2 HD
Brand: TELE-FONIKA
SKU: 887013
Availability: InStock

TELE-FONIKA

22809,26 € VAT incl.

VAT incl. (21%)

Part No: G-108708

Brand: TELE-FONIKA

Request the product

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Request the product

Additional information

Weight	752 kg
Dimensions	1600 × 1600 × 900 mm
Nominal cross section conductor	35mm2
Core identification	Colour
Weight	1470kg/km
Lead sheath	No
Drain wire	No
Nominal voltage U	1000V
Shape of conductor	Sector-shaped
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 2 = stranded
Armouring/reinforcement	None
Number of pilot/reduced conductors	0
Core colour	Black
Nominal voltage U0	600V
Screen	No
Number of cores	4
Protective barrier	None
Outer diameter approx.	22.5mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
AWG size	2
Min. permitted bending radius, stationary application/permanent installation	275mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	Yes
Suitable as installation cable	No
Certified for shipboard application	No
Certified as airport lighting cable	No
Brand	TELE-FONIKA
SKU	887013
EAN	887013
