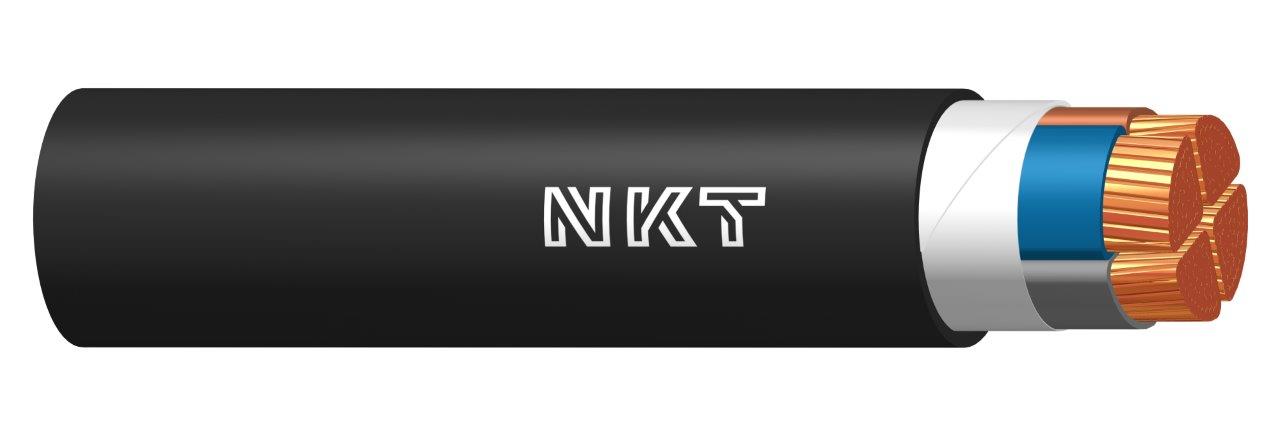

YKXS 4X35 SM
125669,57 € VAT incl.
- VAT excl.
103859,15 € VAT excl.
VAT incl. (21%)
Part No:
112200056
Brand:
NKT
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Additional information
| Nominal cross section conductor |
35mm2 |
|---|---|
| Material core insulation |
Polyolefin |
| Core identification |
Colour |
| Weight |
1484kg/km |
| Flame retardant |
According to IEC/EN 60332-1-2 |
| Circuit integrity |
No |
| Nominal voltage U |
1kV |
| Colour outer sheath |
Black |
| Shape of conductor |
Sector-shaped |
| Conductor material |
Copper |
| Material outer sheath |
Polyvinyl chloride (PVC) |
| Conductor category |
Class 2 = stranded |
| Permitted cable outer temperature during assembling/handling |
-5°C |
| Permitted cable outer temperature after assembling without vibration |
-35°C |
| Number of pilot/reduced conductors |
0 |
| Nominal voltage U0 |
0.6kV |
| Number of cores |
4 |
| Concentric conductor |
None |
| Max. conductor temperature |
90°C |
| Outer diameter approx. |
22.1mm |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| Min. permitted bending radius, stationary application/permanent installation |
265mm |
| Specification core insulation |
Crosslinked polyethylene (XLPE) |
| Specification material outer sheath |
Other |
| Cable geometry |
Round |
| Brand | |
| SKU | 963157 |
| EAN | 8591462125421 |
