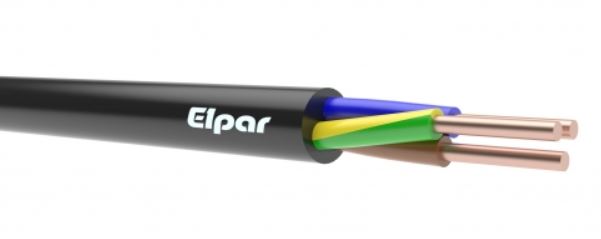

YKXS 5X 35.0 ŻO RM BLACK EARTH CABLE CU WIRE 0.6/1KV CROSS-LINKED CL.2

Name: YKXS 5X 35.0 ŻO RM BLACK EARTH CABLE CU WIRE 0.6/1KV CROSS-LINKED CL.2
Brand: ELPAR
SKU: 3030866
Availability: InStock

26625,98 € VAT incl.

VAT incl. (21%)

Part No: YKXS-5X35-RM(ŻO)-1KV

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	2165 kg
Dimensions	1500 × 1500 × 710 mm
Nominal cross section conductor	35mm2
Material core insulation	Other
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	1000V
Colour outer sheath	Black
Shape of conductor	Round
Diameter conductor	30.8mm
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 2 = stranded
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	600V
Number of cores	5
Max. conductor temperature	90°C
Protective barrier	None
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	3030866
EAN	5901854422152
