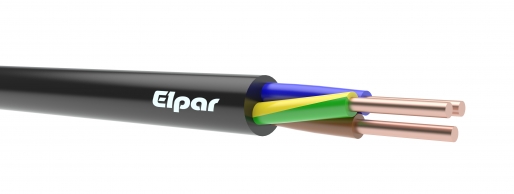

YKY 2X 2.5 RE BLACK EARTH CABLE CU WIRE 0.6/1KV CL.1

Name: YKY 2X 2.5 RE BLACK EARTH CABLE CU WIRE 0.6/1KV CL.1
Brand: ELPAR
SKU: 613344
Availability: InStock

1350,59 € VAT incl.

VAT incl. (21%)

Part No: YKY-2X2,5-RE-1KV NYY

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	155 kg
Dimensions	600 × 600 × 400 mm
Nominal cross section conductor	2.5mm2
Core identification	Colour
Weight	147kg/km
Drain wire	No
Nominal voltage U	1000V
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Core colour	Black
Nominal voltage U0	600V
Screen	No
Number of cores	2
Protective barrier	None
Outer diameter approx.	9.8mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
AWG size	14
Min. permitted bending radius, stationary application/permanent installation	123mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Suitable as installation cable	No
Certified for shipboard application	No
Brand	ELPAR
SKU	613344
EAN	5901854415130
