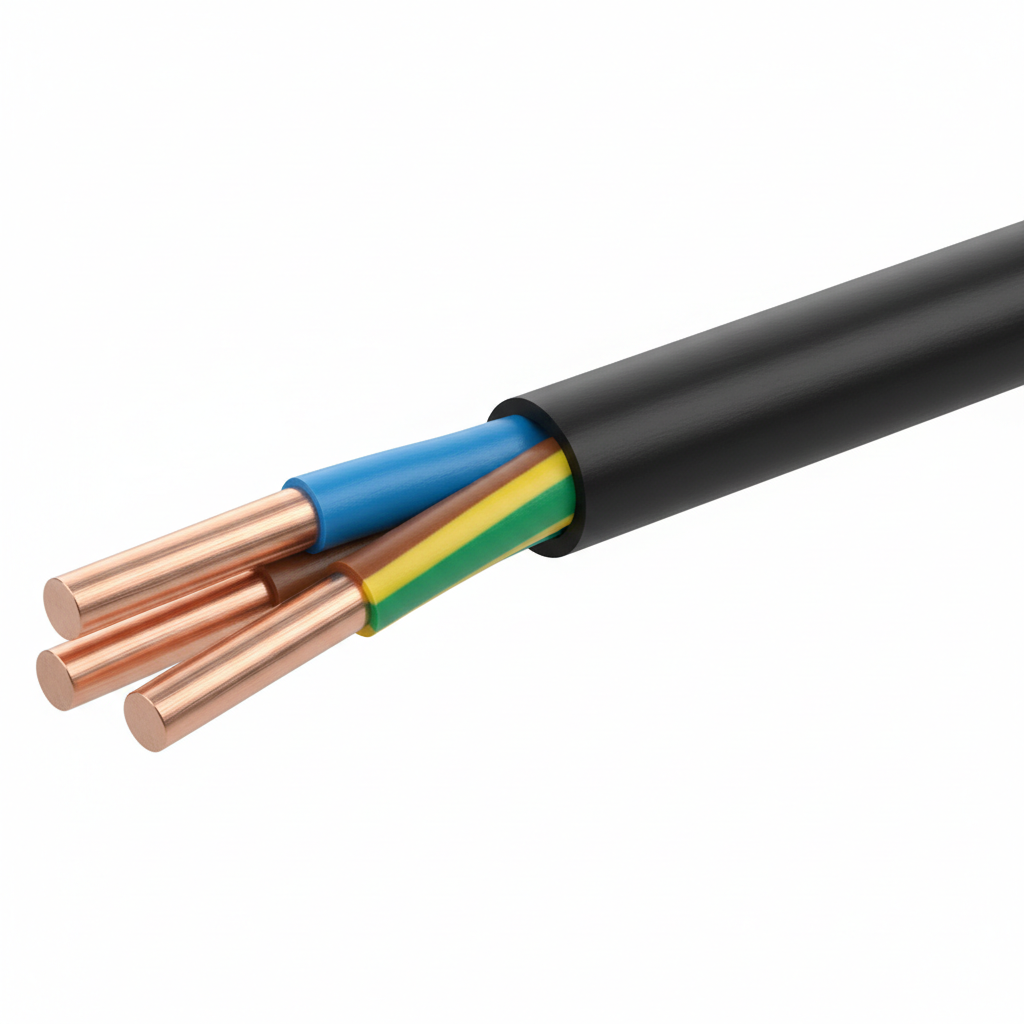

YKY 3X 1.5 ŻO RE BLACK EARTH CABLE CU WIRE 0.6/1KV REEL CL.1

Name: YKY 3X 1.5 ŻO RE BLACK EARTH CABLE CU WIRE 0.6/1KV REEL CL.1
Brand: MERCOR
SKU: 3103796
Availability: InStock

1112,64 € VAT incl.

VAT incl. (21%)

Part No: 5900000045382

Brand: MERCOR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	144 kg
Dimensions	600 × 600 × 400 mm
Nominal cross section conductor	1.5mm2
Core identification	Colour
Weight	137kg/km
Lead sheath	No
Drain wire	Yes
Nominal voltage U	1000V
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Core colour	Black
Nominal voltage U0	600V
Screen	No
Number of cores	3
Protective barrier	None
Outer diameter approx.	9.5mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	119mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	MERCOR
SKU	3103796
EAN	5900000045382
