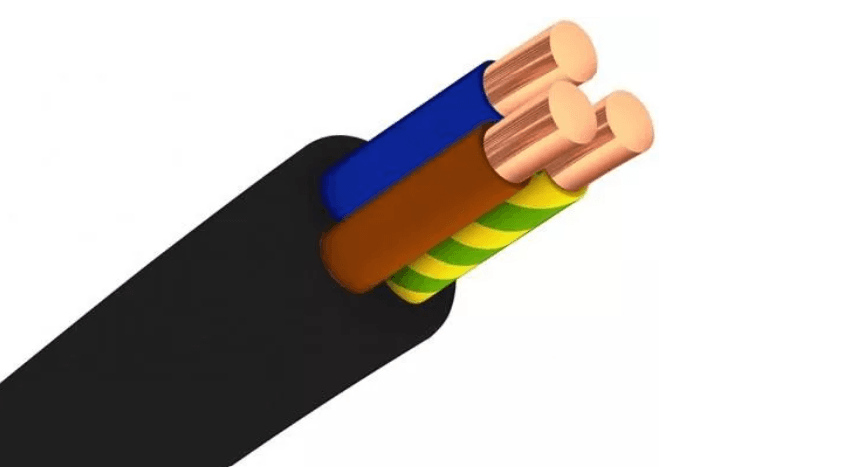

YKY 3X 2.5 ¿O RE BLACK EARTH CABLE CU WIRE 0.6/1KV DRUM CL.1

Name: YKY 3X 2.5 ¿O RE BLACK EARTH CABLE CU WIRE 0.6/1KV DRUM CL.1
Brand: ELPAR
SKU: 845134
Availability: InStock

1364,09 € VAT incl.

VAT incl. (21%)

Part No: YKY-3X2,5-RE(ŻO)-1KV NYY

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	184 kg
Dimensions	400 × 400 × 400 mm
Nominal cross section conductor	2.5mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	1000V
Colour outer sheath	Black
Shape of conductor	Round
Diameter conductor	10.6mm
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	600V
Number of cores	3
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	10.6mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	127.2mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	845134
EAN	5901854415253
