Weight	1050 kg
Dimensions	1000 × 20 × 20 mm
Nominal cross section conductor	16mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	894kg/km
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	No
Nominal voltage U	1kV
Colour outer sheath	Black
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Permitted cable outer temperature during assembling/handling	-5°C
Permitted cable outer temperature after assembling without vibration	-35°C
Number of pilot/reduced conductors	0
Nominal voltage U0	0.6kV
Number of cores	4
Concentric conductor	None
Max. conductor temperature	70°C
Outer diameter approx.	19.2mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	230mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	NKT
SKU	773331
EAN	8591462018402

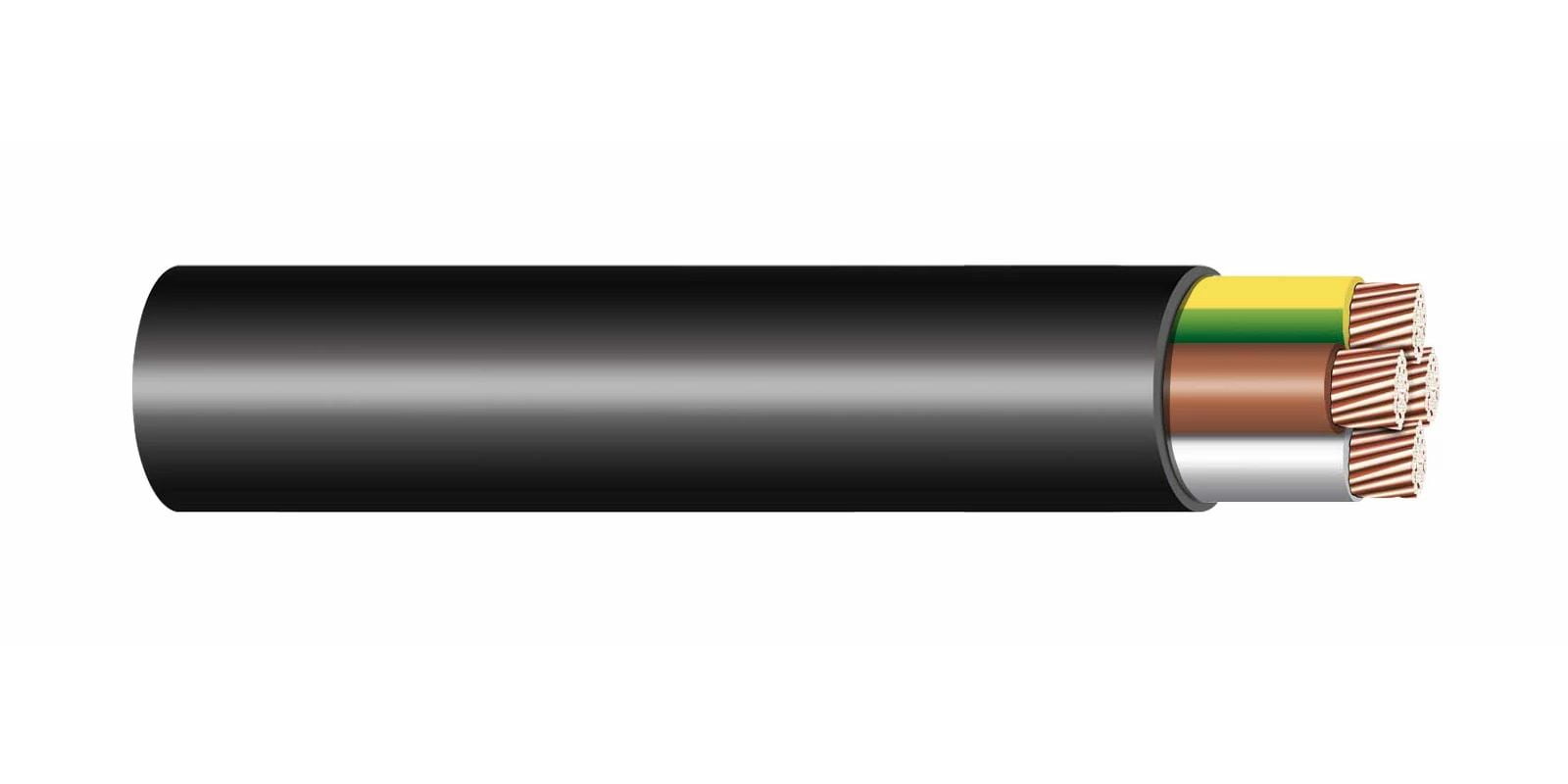

YKY 4X 16.0 CONDUCTOR BLUE RE BLACK EARTH CABLE CU WIRE 0.6/1KV REEL CL.1
